Product Description

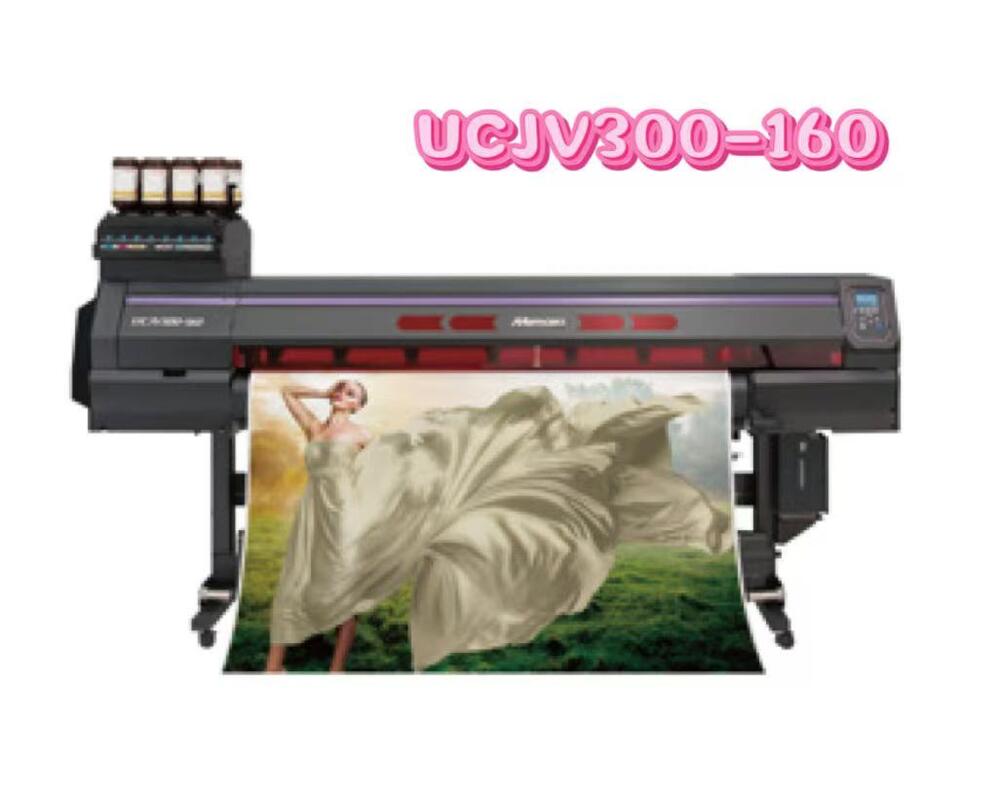

Mimaki UCJV300-160 Print & Cut LED-UV Printer

1610mm Wide, 25.8㎡/h Max Speed, LUS-200 Ink (200% Stretch) for Large Signage/Vehicle Wrapping

All-in-One Print & Cut for Extra-Large Formats

Integrates high-performance UV printing and precision cutting in a single unit, eliminating the need for separate equipment. Ideal for large-scale print shops and production facilities, supporting 1610mm wide outputs - perfect for large-format signage, long-sized stickers, vehicle wrapping, and bulk marketing materials.

1610mm Wide Print & High-Efficiency Speed Modes

Printable up to 1610mm width, with 5 adjustable speed-quality settings tailored to high-volume and premium needs:

Draft 300×600dpi, 4pass: 25.8㎡/h (max efficiency for bulk large-format orders)
High Speed 300×900dpi, 6pass: 20.6㎡/h (balanced workflow for daily production)
Standard 600×600dpi, 8pass: 15.7㎡/h (core balance of quality and speed)
Quality 600×1200dpi, 16pass: 8.0㎡/h (fine-detail output for premium signage)
High Quality 1200×1200dpi, 16pass: 4.7㎡/h (ultra-sharp prints for high-end marketing materials)

Eco-Friendly & High-Stretch Inks

LUS-170/LUS-200 UV Inks: GREENGUARD Gold certified (low-VOC), safe for schools, medical facilities, and global markets
200% stretchability: Perfect for vehicle wrapping and curved surfaces - ink won't crack or peel during application
Supports CMYK + White + Clear ink: Mimaki Clear Control technology suppresses dust and bubbles, enabling glossy/matte finishes for versatile design effects

Creative Multi-Layer Printing Capabilities

4-Layer Day & Night Printing: Color + Black + White + Color layers create dynamic ads that shift appearance in daylight/backlight (ideal for large light boxes)
5-Layer Front & Back Printing: Achieve dual-sided designs without extra processing, expanding application scope for large signage and promotional materials
ARTISTA UV Texture Library: 129 built-in textures (via RasterLink7 software) - easily add unique decorative effects to boost product value

Broad Material Compatibility & Smart Cutting

Prints on PVC, tarpaulin, fabric, PET, non-ink-receiving paper, and vehicle wrapping films. Integrated ID Cut function simplifies small-batch, multi-type orders, while LED-UV instant curing eliminates drying time - drastically reducing turnaround for urgent large-format projects.

Industrial-Grade & User-Friendly Design

Intuitive RasterLink7 software: Supports color management, texture integration, and seamless workflow for large-format files
Durable construction: Built for heavy-duty, continuous use in commercial print shops, with low maintenance to reduce long-term operational costs
Space-efficient: Delivers 1610mm wide output without excessive footprint, fitting large workshop layouts

Technical Specifications

Parameter	Details
Model	Mimaki UCJV300-160
Type	Print & Cut LED-UV Curable Inkjet Printer
Max Print Width	1610mm
Print Resolution	Up to 1200×1200dpi
Printing Speed	Draft: 25.8㎡/h; High Speed: 20.6㎡/h; Standard: 15.7㎡/h; Quality: 8.0㎡/h; High Quality: 4.7㎡/h
Ink Compatibility	LUS-170 (Flexible UV Ink), LUS-200 (200% Stretch UV Ink) - GREENGUARD Gold Certified
Ink Options	CMYK + White + Clear
Core Functions	Day&Night Printing, Front&Back Printing, Mimaki Clear Control (Gloss/Matte), ID Cut
Compatible Materials	PVC, tarpaulin, fabric, PET, vehicle wrapping films, long-sized stickers, non-ink-receiving paper, etc.
Curing Technology	LED-UV (instant curing, no drying time)
Software	RasterLink7 (with ARTISTA UV Texture Library)
Key Advantage	All-in-One Print & Cut, 1610mm Extra-Wide Format, Fast Turnaround for Large Orders
