Place of Origin:
CHINA
Brand Name:
JOYINJET
Certification:
CE
Model Number:
UCJV300-75
Document:

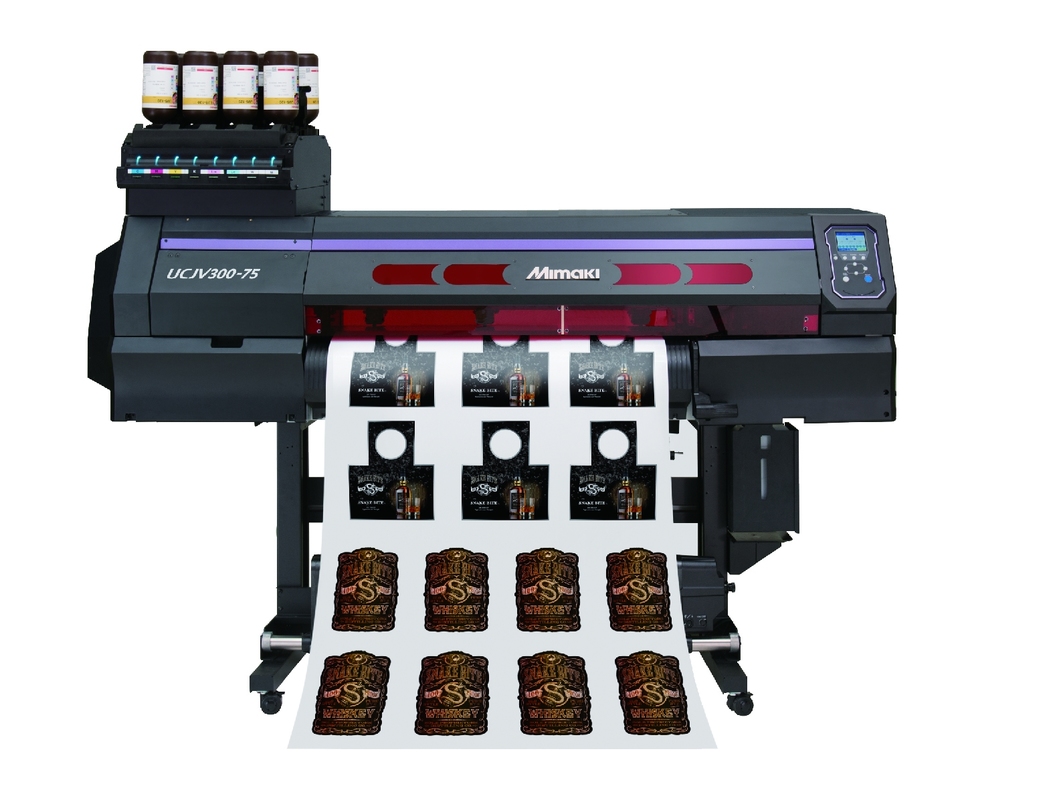

[UCJV300 Series] is a versatile inkjet printer having a combined function of both printing and cutting mounted with UV-curable ink.
[UCJV300 Series] is a high spec model equipped with the 4-layer/5-layer print function in addition to UV LED print and Print&Cut.
This new model is enough to cover wider ranges from a quick job with short delivery time to an avant-garde signboard.
Printable up to 800 mm width.
Small foot-print and versatile model covering wide range of stickers, labels and point of sales materials making.
| UCJV300-75 | UCJV300-107 | UCJV300-130 | UCJV300-160 | ||
|---|---|---|---|---|---|
| Print head | On-demand piezo head | ||||
| Print resolution | 300dpi, 600dpi, 900dpi, 1200dpi | ||||
| Droplet size | Min. 7pl, Max. 28pl | ||||
| Head gap | 3 degrees adjustment (2.0/2.5/3.0 mm) by manual | ||||
| Ink | Type/Color | LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl) | |||
| LED-UV ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl) *Only available in specific countries |
|||||
| LED-UV ink: LUS-200 (C, M, Y, K, W) | |||||
| Capacity | 1L (Bottle supply) | ||||
| Max. print width | 800 mm (31.5 in) |
1,090 mm (42.9 in) |
1,361 mm (53.5 in) |
1,610 mm (63.4 in) |
|
| Max. media width | 810 mm (31.9 in) |
1,100 mm (43.3 in) |
1,371 mm (54.0 in) |
1,620 mm (63.8 in) |
|
| Media thickness | 1.0 mm or less | ||||
| Media roll outer diameter | φ250 mm or less | ||||
| Media roll weight | 40 kg (88.2 lb) or less | ||||
| Cut speed | Max. 300 mm/s (420 mm/s in 45 degrees direction) | ||||
| Cut pressure | 10-450 gf | ||||
| Cutter Types | Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure |
||||
| Safety standard | VCCI Class A / FCC Class A / UL 60950-1 ETL / CE Marking (EMC, Low voltage, Machinery directive, RoHS) / CB Report / REACH / ENERGY STAR® / RCM |
||||
| Interface | USB2.0 / Ethernet 1000 BASE-T | ||||
| Power supply | Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) | ||||
| Power consumption | AC100V: 1.44kW / AC200V: 1.92kW | ||||
| Operational environment | Temperature: 20-30 degC / 68-86 degF Humidity: 35-65% Rh (Non condensing) |
||||
| Dimensions (W×D×H) | 2,090 x 776 x 1,475 mm (82.3 x 30.6 x 58.1 in) |
2,380 x 776 x 1,475 mm (93.7 x 30.6 x 58.1 in) |
2,650 x 776 x 1,475 mm (104.3 x 30.6 x 58.1 in) |
2,900 x 776 x 1,475 mm (114.2 x 30.6 x 58.1 in) |
|
| Weight | 144 kg (317.5 lb) |
161 kg (354.9 lb) |
177 kg (390.2 lb) |
188 kg (414.5 lb) |
|
| LUS-170 ［C,M,Y,K,Lc,Lm,W,Cl］ |
C M Y K |
|---|---|
| C M Y K Lc Lm W | |
| C M Y K W Cl | |
| LUS-175 ［C,M,Y,K,Lc,Lm,W,Cl］ |
C M Y K |
| C M Y K Lc Lm W | |
| C M Y K W Cl | |
| LUS-200 ［C,M,Y,K,W］ |
C M Y K |
| C M Y K W |
*Click to view larger image.
 |
 |
 |
 |
|||
| Outdoor signboard | Illumination signboard | Poster | Banners and flags (fabric) | |||
 |
 |
 |
 |
|||
| Swing P.O.P. (PET film) | Label | Wallpaper | Shoji (sliding paper door) | |||
