Product outlines

Product outlines

UCJV300-160

UCJV300-160

Name: 300dpi 600dpi 900dpi 1200dpi UV Roll to Roll Printer Mimaki UCJV300-160
Brand: Henan Joyin Digital Technology Co., Ltd.
SKU: UCJV300-160
Availability: InStock

Home > Products > UV Roll to Roll Printer >

300dpi 600dpi 900dpi 1200dpi UV Roll to Roll Printer Mimaki UCJV300-160

Place of Origin:

Japan

Brand Name:

Mimaki

Certification:

Model Number:

UCJV300-160

Document:

UCJV300 Series .pdf

Chat Now

Request A Quote

Product Details

Print Head:

On-demand Piezo Head

Print Resolution:

300dpi, 600dpi, 900dpi, 1200dpi

Droplet Size:

Min. 7pl, Max. 28pl

Head Gap:

3 Degrees Adjustment (2.0/2.5/3.0 Mm) By Manual

Ink Type/Color:

LED-UV Ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl) LED-UV Ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl) *Only Available In Specific Countries LED-UV Ink: LUS-200 (C, M, Y, K, W)

Ink Capacity:

1L (Bottle Supply)

Max. Print Width:

1,610 Mm (63.4 In)

Max. Media Width:

1,620 Mm (63.8 In)

Media Thickness:

1.0 Mm Or Less

Media Roll Outer Diameter:

φ250 Mm Or Less

Media Roll Weight:

40 Kg (88.2 Lb) Or Less

Cut Speed:

Max. 300 Mm/s (420 Mm/s In 45 Degrees Direction)

Cut Pressure:

10-450 Gf

Cutter Types:

Eccentric Cutter, Blade For Small Character, Blade For Reflective Sheet, Blade For Fluorescent Sheet, Blade For PVC With Low-pressure

Safety Standard:

VCCI Class A / FCC Class A / UL 60950-1 ETL / CE Marking (EMC, Low Voltage, Machinery Directive, RoHS) / CB Report / REACH / ENERGY STAR® / RCM

Interface:

USB2.0 / Ethernet 1000 BASE-T

Power Supply:

Single Phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz)

Power Consumption:

AC100V: 1.44kW / AC200V: 1.92kW

Operational Environment:

Temperature: 20-30 DegC / 68-86 DegF Humidity: 35-65% Rh (Non Condensing)

Dimensions (W×D×H):

2,900 X 776 X 1,475 Mm (114.2 X 30.6 X 58.1 In)

Weight:

188 Kg (414.5 Lb)

Product Name:

UV Roll To Roll Printer

Feature:

High Precision,High Production

Brand:

MIMAKI

Certification:

Technology:

Advanced UV-LED

Design:

Eco-Friendly

Highlight:

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

negotiable

Packaging Details

Standard Packaging

Delivery Time

7-15 Working Days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000sets per month

Chat Now

Chat Now

Chat Now

Chat Now

86--13303811925

rico@joyinprinter.com

Chat Now

Product Description

Mimaki UCJV300-160 High specifcation model avallable with 4-layer/5-layer print LED-UV Print and Cut Inkjet Printer

Product Description

[UCJV300 Series] is a versatile inkjet printer having a combined function of both printing and cutting mounted with UV-curable ink.

[UCJV300 Series] is a high spec model equipped with the 4-layer/5-layer print function in addition to UV LED print and Print&Cut.
This new model is enough to cover wider ranges from a quick job with short delivery time to an avant-garde signboard.

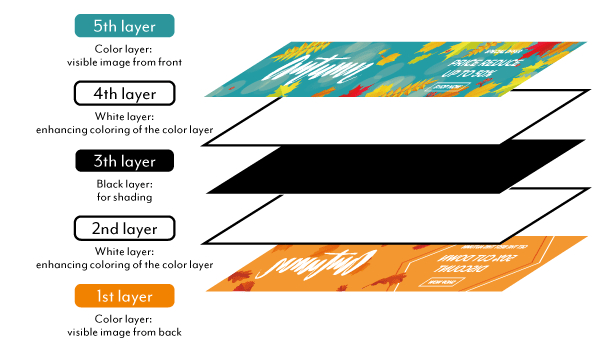

"Multilayer print" for a new advertisement expression
- 4 layer print [Day & Night Printing]
- 5 layer print [Front & Back Printing]
On-demand print utilizing UV characteristics
- Quick access to next processing and sign applying due to UV ink property
- Wide range of applications
Newly developed environmentally friendly UV ink, [LUS-170] and [LUS-175]
- Clear ink added!
Flexible UV Ink [LUS-200]
Productive cutting functions. A new function, [ID Cut] will highly improve the work efficiency
Upgraded RIP software, [RasterLink6Plus], [RasterLink7]

Printable up to 1610 mm width.
Applicable to large format sign, long-sized sticker, vehicle wrapping films, too. Reliable functions for Print & Cut to wide sized print production.
