Place of Origin:
Japan
Brand Name:
MIMAKI
Certification:
CE
Model Number:
TXF150-75
Document:

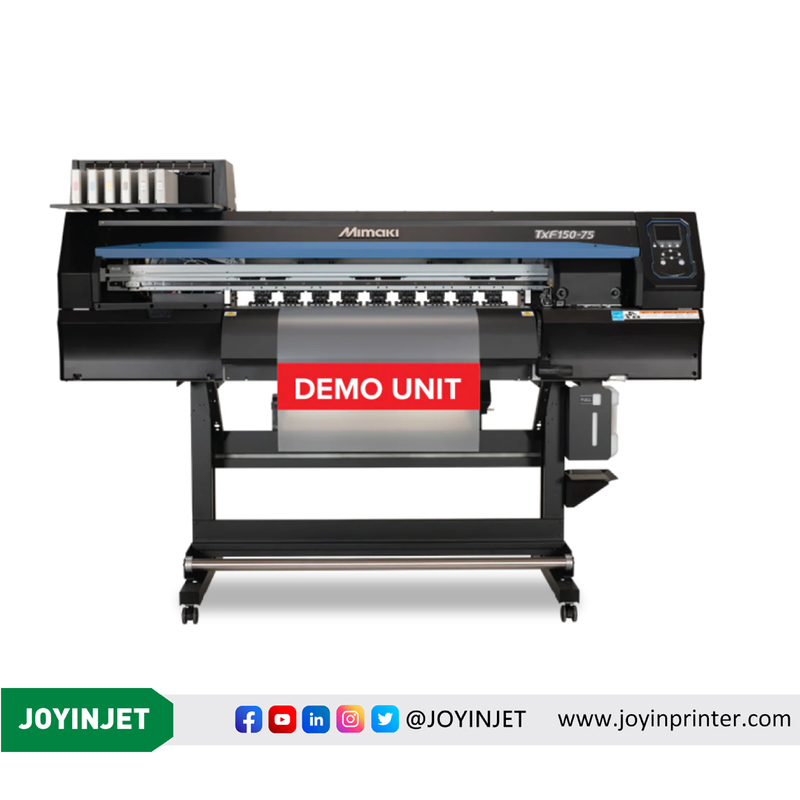

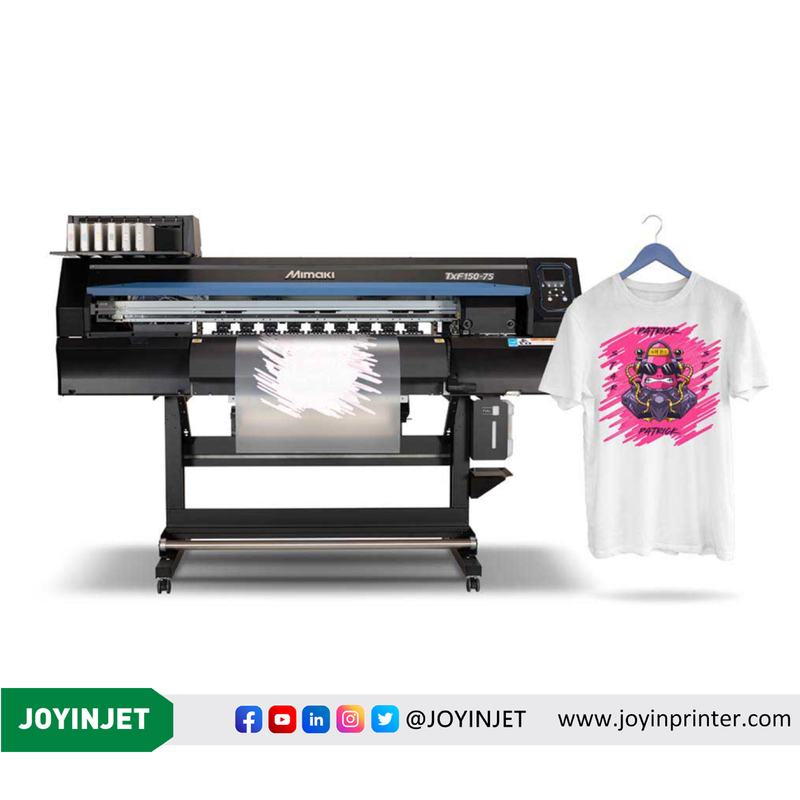

"TxF150-75" is a Mimaki's first DTF (direct-to-film) printer with a maximum printing width of 80 cm for producing DTF print transfer sheets. "PHT50" heat transfer pigment ink for DTF, consisting of five colors (CMYK and white), has acquired the ECO PASSPORT certification which is essential for obtaining the international safety standard for textile products “OEKO-TEX®”.
The DTF printers have been plagued by ink ejection defects and white ink clogging. To overcome these issues, Mimaki has adopted a degassing ink design that uses aluminum packs as the printer's ink packaging form, as well as a white ink circulation function MCTv2 (Mimaki Circulation Technology)*1. The new printer also features Mimaki's NCU (Nozzle Check Unit)*2 and NRS (Nozzle Recovery System)*3 technologies that support stable operation. They ensure continuous printing without stopping the operation to support customers' productions.
A printing method which prints directly on DTF film, sprinkles hot-melt powder, which is then heated and dried to form transferable ink layer. The ink layer is heat-pressed and transferred to a fabric such as T-shirt.
| TxF150-75 | ||
|---|---|---|
| Print head | On-demand piezo head | |
| Printing resolution | 720dpi, 1,080dpi, 1,440dpi | |
| Ink | Type/Color | Heat transfer pigment ink PHT50 (C, M, Y, K, W) |
| Capacity | 600ml ink pack (500ml for white only) | |
| Circulation function | Available only for white ink | |
| Maximum print width | 800mm (31.5 in) | |
| Media | Maximum width | 810mm (31.9 in) |
| Thickness | 1.0mm or less | |
| Roll weight | 45 kg (99.2 lb) or less | |
| Interface | Ethernet 1000 BASE-T / USB2.0 Hi-speed | |
| Power specifications | Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 | |
| Power consumption | 100V system: 0.9kW or less, 200V system: 1.2kW or less | |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC | |
| Dimensions (W×D×H) | 1,965 x 700 x 1,392 mm (77.4 x 27.6 x 54.8 in) | |
| Weight | 126kg (277.8 lb) | |
T-shirt
