Place of Origin:
Japan
Brand Name:
MIMAKI
Certification:
CE
Model Number:

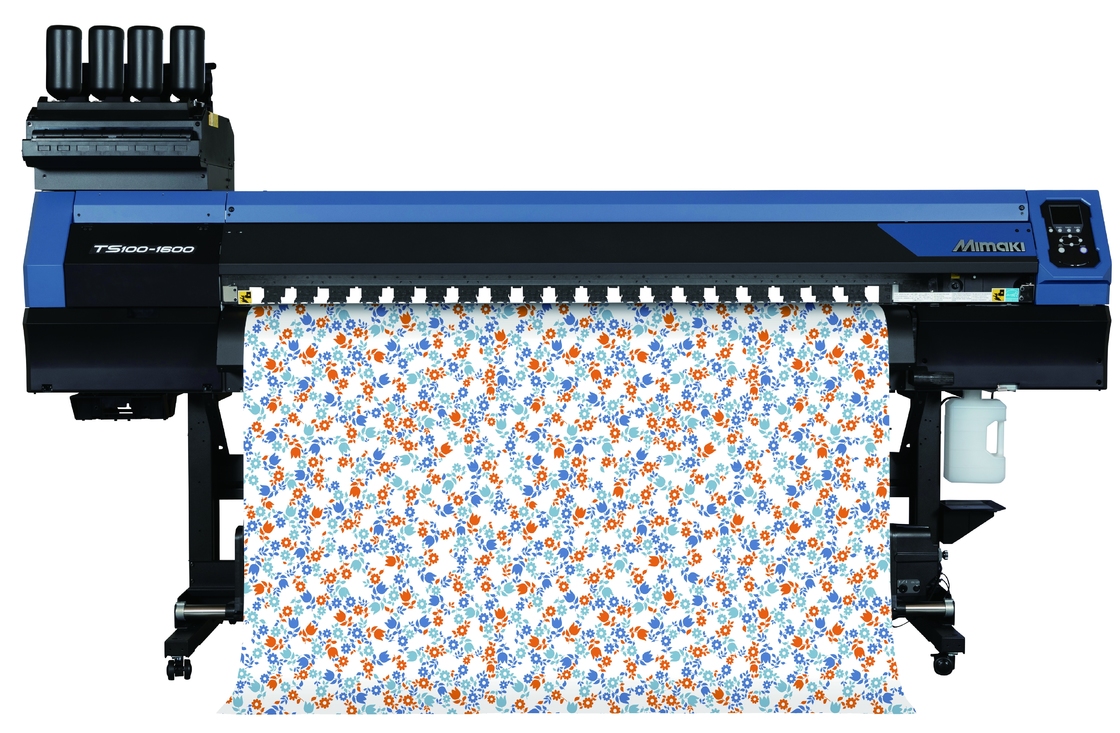

TS100-1600
Document:
With two newly developed heads, the TS100-1600 has pursued high quality, high productivity, and stable operation as a Sublimation transfer inkjet printer. Achieves about twice the high-speed printing of conventional machine for textiles*.
In addition to NCU (Nozzle Check Unit), NRS (Nozzle Recovery System) and MAPS4 (Mimaki Advanced Pass System4), which enable stable high quality printing, the DAS (Dot Adjustment System) was incorporated into the new “100 series” printers. Dot position and feed correction, which used to take a lot of time and effort to do manually, can now be done automatically, reducing the workload on the operator.
| TS100-1600 | ||
|---|---|---|
| Print head | On-demand piezo head (2 staggered layout) | |
| Print resolution | 360 dpi, 600 dpi, 720 dpi, 900 dpi | |
| Ink | Type/ Color | Sublimation ink Sb610 (Bl,M,Y,K) |
| Capacity | 1L bottle | |
| Maximum print width | 1,610 mm (63.4") | |
| Media | Maximum width | 1,620 mm (63.8") |
| Thickness | 1 mm or lower | |
| Roll diameter | φ250 mm or less | |
| Roll weight | 45 kg or less | |
| Roll inside diameter | 2 inch / 3 inch | |
| Certifications | VCCI class A, FCC class A, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC |
|
| Interface | USB2.0 / Ethernet 1000BASE-T | |
| Power supply | Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz | |
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) |
|
| Dimensions (W×D×H) | 2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1") | |
| Weight | 166 kg (366 lb) | |
