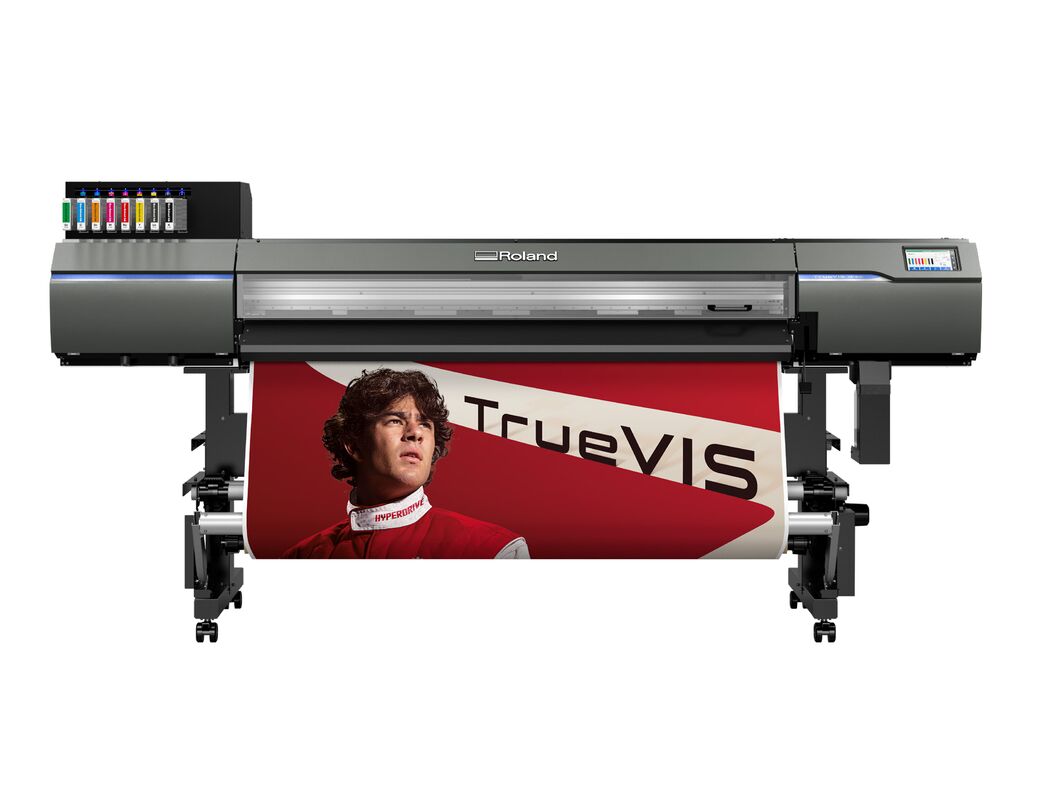

Brand Name:
Roland
Model Number:
XP640
Document:
| Model | XP-640 |
|---|---|
| Printing Method | Piezo ink-jet method |
| Media |
Width: 10.2 to 64 in. (259 to 1,625 mm) Thickness: Max. 39.3 mil (1.0 mm) with liner Roll outer diameter: Max. 9.8 in. (250 mm) Roll weight: Max. 99 lb. (45 kg) Core diameter: 3 in. (76.2 mm) or 2 in. (50.8 mm) |
| Printing Width (*1) | Max. 63.5 in. (1,615 mm) |
| Ink |
Type: Eco-Solvent Ink (TH) 500 ml cartridge Colors: Eight colors (Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red) Four colors (Cyan, Magenta, Yellow, and Black) |
| Printing Resolution | Max. 1,800 dpi |
| Media Heating System (*2) |
Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| Power-saving Function | Automatic sleep feature |
| Rated Input | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A |
| Power Consumption |
During Operation: Approx. 1,180 W Sleep Mode: Approx. 50 W |
| Acoustic Noise Level |
During Operation: 66 dB (A) or less During Standby: 53 dB (A) or less |
| Dimensions | 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) |
| Weight | 417 lb. (189 kg) |
| Environment |
During Operation (*3): Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80% RH (no condensation) Not Operating: Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80% RH (no condensation) |
| Included Items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. |
