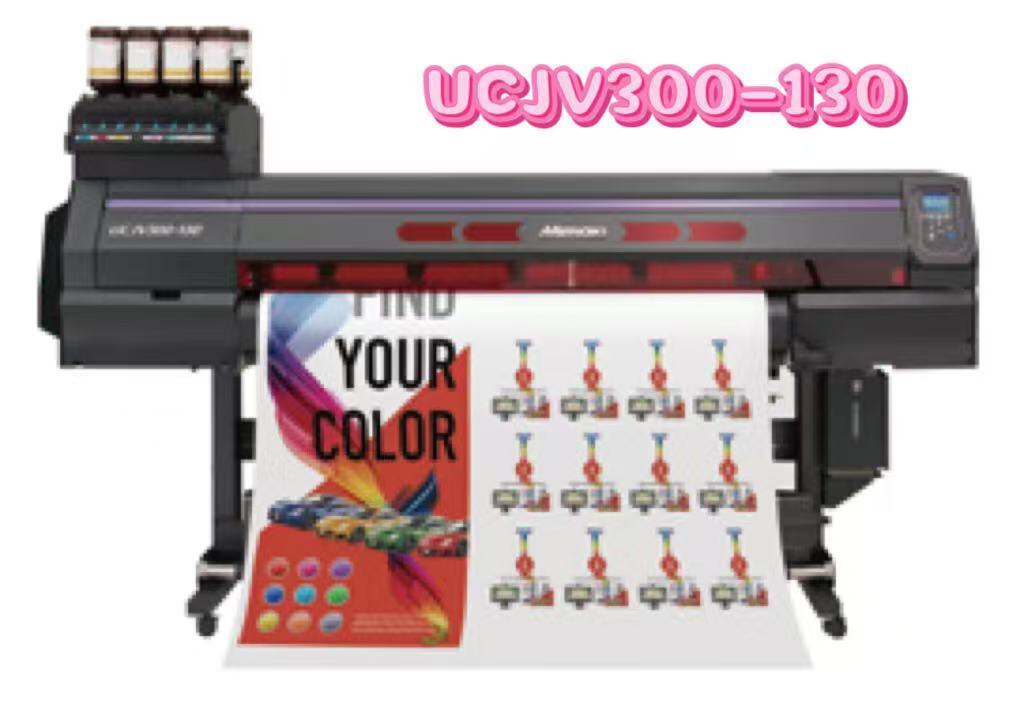

Name: Mimaki UCJV300-130 LED-UV Printer with 1361mm Width, 200% Stretch Ink, and 24.0㎡/h Max Speed for Large Signage
Brand: Henan Joyin Digital Technology Co., Ltd.
SKU: UCJV300-130
Availability: InStock

Home > Products > UV Roll to Roll Printer >

Mimaki UCJV300-130 LED-UV Printer with 1361mm Width, 200% Stretch Ink, and 24.0㎡/h Max Speed for Large Signage

1361mm Width LED-UV Printer

200% Stretch Ink Print & Cut Machine

24.0㎡/h Max Speed UV Roll to Roll Printer

Place of Origin:

Japan

Brand Name:

Mimaki

Certification:

Model Number:

UCJV300-130

Document:

UCJV300 Series .pdf

Chat Now

Request A Quote

Product Details

Highlight:

1361mm Width LED-UV Printer

200% Stretch Ink Print & Cut Machine

24.0㎡/h Max Speed UV Roll to Roll Printer

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

Negotiable

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Factory Wholesale Mimaki UJV100-160PLUS UV LED Printer with 160mm Width for High-Quality DTF Printing

Chat Now

Mimaki UJV100-160Plus,White & Clear Ink CapabilityThe 64" UV Printer That Delivers Instant Results and Value.

Chat Now

Mimaki UJF-6042MKII e: A2 Flatbed UV Printer for High-Value Customized Products,Wide Material Compatibility, Precise Stability.

Chat Now

Roland DGXPRESS UG-642 64-inch UV LED Print & Cut Machine with High-Definition Print and Eco-UV Inks

Chat Now

86--13303811925

info@joyinprinter.com

Chat Now

Product Description

All-in-One Print & Cut for Large-Format Applications

This integrated UV printing and precision cutting system combines high-quality output with streamlined workflow efficiency. Designed for medium-to-large production environments, the 1361mm wide format capability makes it ideal for large signage, marketing materials, extended stickers, and vehicle wrapping applications.

Wide Format Performance & Speed Optimization

With 1361mm maximum print width and five adjustable speed-quality settings, this system adapts to diverse production requirements:

Draft Mode (300×600dpi, 4pass): 24.0㎡/h - Maximum efficiency for bulk large-format orders
High Speed Mode (300×900dpi, 6pass): 19.1㎡/h - Balanced workflow for daily large-sign production
Standard Mode (600×600dpi, 8pass): 14.6㎡/h - Core balance of quality and speed
Quality Mode (600×1200dpi, 16pass): 7.5㎡/h - Fine-detail output for premium marketing materials
High Quality Mode (1200×1200dpi, 16pass): 4.5㎡/h - Ultra-sharp prints for high-end signage

Eco-Friendly High-Performance Inks

LUS-170/LUS-200 UV inks deliver exceptional performance with environmental responsibility:

GREENGUARD Gold Certified - Low-VOC formulation safe for schools, medical facilities, and global markets
200% Stretchability - Perfect for vehicle wrapping and curved surfaces without cracking or peeling
CMYK + White + Clear Ink System - Mimaki Clear Control technology suppresses dust and bubbles for versatile glossy/matte finishes

Advanced Multi-Layer Printing Capabilities

4-Layer Day & Night Printing - Color + Black + White + Color layers create dynamic advertisements that transform under different lighting conditions, ideal for light box applications
5-Layer Front & Back Printing - Achieve dual-sided designs without additional processing, expanding application scope for signage and promotional materials
ARTISTA UV Texture Library - 129 built-in textures via RasterLink7 software for unique decorative effects that enhance product value

Versatile Material Compatibility & Smart Cutting

Compatible with PVC, tarpaulin, fabric, PET, vehicle wrapping films, and non-ink-receiving paper. The integrated ID Cut function streamlines small-batch, multi-type orders, while LED-UV instant curing eliminates drying time - dramatically reducing turnaround for urgent large-format projects.

Industrial-Grade Design & User Experience

Intuitive RasterLink7 Software - Comprehensive color management, texture integration, and seamless workflow for large-format files
Durable Construction - Built for heavy-duty use in commercial print shops with low maintenance requirements
Space-Efficient Footprint - Delivers 1361mm wide output while fitting medium-to-large workshop layouts

Technical Specifications

Model	Mimaki UCJV300-130
Type	Print & Cut LED-UV Curable Inkjet Printer
Max Print Width	1361mm
Print Resolution	Up to 1200×1200dpi
Printing Speed	Draft: 24.0㎡/h; High Speed: 19.1㎡/h; Standard: 14.6㎡/h; Quality: 7.5㎡/h; High Quality: 4.5㎡/h
Ink Compatibility	LUS-170 (Flexible UV Ink), LUS-200 (200% Stretch UV Ink) - GREENGUARD Gold Certified
Ink Options	CMYK + White + Clear
Core Functions	Day & Night Printing, Front & Back Printing, Mimaki Clear Control (Gloss/Matte), ID Cut
Compatible Materials	PVC, tarpaulin, fabric, PET, vehicle wrapping films, long-sized stickers, non-ink-receiving paper, etc.
Curing Technology	LED-UV (instant curing, no drying time)
Software	RasterLink7 (with ARTISTA UV Texture Library)
Key Advantage	All-in-One Print & Cut, 1361mm Wide Format, Fast Turnaround for Large Orders
