Name: Mimaki MP-E106614 (E106614): High-Precision Linear Encoder PCB Assy — The Critical Sensor Component for Carriage Positioning and Print Registration.
Brand: Henan Joyin Digital Technology Co., Ltd.
SKU: MP-E106614
Availability: InStock

Home > Products > Printer Consumables >

Mimaki MP-E106614 (E106614): High-Precision Linear Encoder PCB Assy — The Critical Sensor Component for Carriage Positioning and Print Registration.

Mimaki linear encoder PCB

high-precision carriage positioning sensor

printer consumables with warranty

Place of Origin:

Japan

Brand Name:

Mimaki

Certification:

Model Number:

MP-E106614

Chat Now

Request A Quote

Product Details

Product Name:

Linear Encoder PCB Assy / Raster Sensor

Part Number (P/N):

MP-E106614 (Replaces E103961 / E104051)

Brand:

Mimaki

Compatible Models:

JV33, JV5, CJV30, JV150, JV300, CJV150, CJV300, UJF-3042 Series, Etc.

Highlight:

Mimaki linear encoder PCB

high-precision carriage positioning sensor

printer consumables with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard Packaging

Delivery Time

10-15 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Original Roland DG DGXPRESS D-UAP-7 ECO-UV Ink Pouch 750ml for UG-642 UG-641 High-Speed UV Printers.

Chat Now

Original Roland ECO-UV EUV5P Ink Pouch 750ml Series EUV5P-7 for TrueVIS LG-640 LG-540 LG-300 VersaOBJECT MO-240 UV Printers.

Chat Now

Original Mimaki MP-M015372 DX7 Printhead CJV300 5540 Head Assy with Memory Board for JV150 JV300 CJV150 CJV300 Printers

Chat Now

Original Mimaki MP-M905240 Cap Head Assembly Capping Top Station (SPA-0133) for JV33 JV150 JV300 CJV150 CJV300 DX5 DX7 Printers

Chat Now

86--13303811925

rico@joyinprinter.com

Chat Now

Product Description

Product Overview

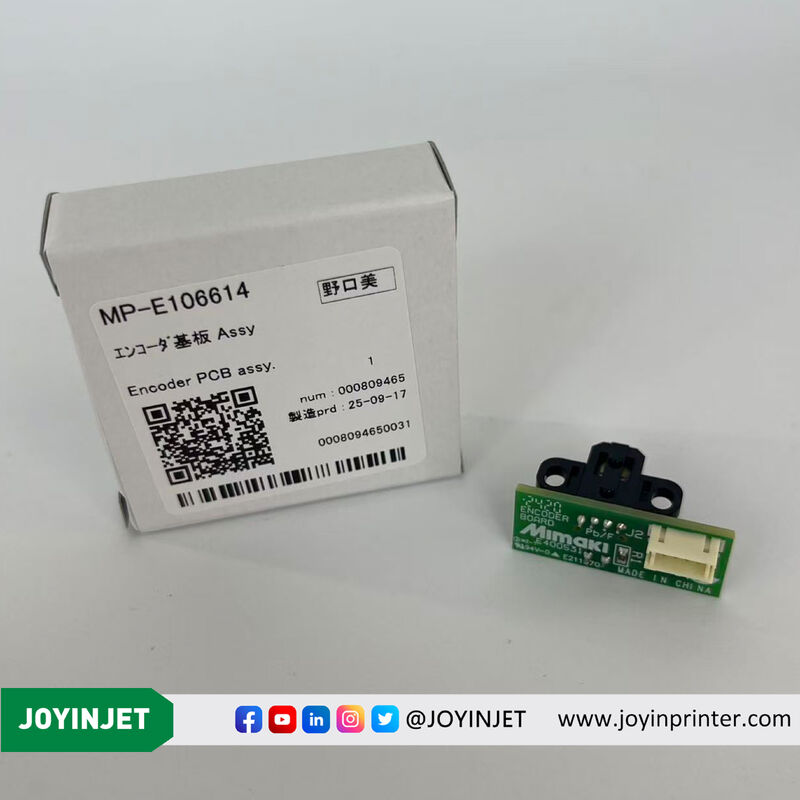

The Mimaki MP-E106614 is a genuine original Linear Encoder PCB Assembly (commonly known as the Raster Sensor). Mounted on the printer carriage, this component uses infrared optical sensors to detect timing patterns on the encoder strip in real-time. It is a vital electronic part that ensures sub-micron horizontal positioning accuracy and eliminates imaging issues such as ghosting or banding.

Key Features

Real-Time Position Feedback: Detects 150 LPI (or higher) patterns on the encoder strip to provide consistent, high-precision carriage location feedback to the main control system.
Precise Jetting Trigger: Triggers the printhead nozzles based on captured position signals, ensuring ink droplets land accurately on specific pixels even at high speeds.
Synchronized Motion Control: Assists the servo system in smooth acceleration and deceleration, reducing mechanical vibration during the printing process.

Core Advantages

Genuine OEM Quality: Made in Japan, ensuring perfect electrical compatibility with original circuit boards and superior signal stability compared to aftermarket parts.
High Sensing Precision: Features excellent optical resolution and anti-interference capabilities to prevent print misalignment caused by raster reading errors.
Long-Term Durability: Optimized for printing environments with ink mist and solvent vapors; the sensor window is designed for long service life and resistance to aging.
Plug-and-Play Installation: Standardized interface design allows for quick replacement without complex calibration, minimizing equipment maintenance downtime.

Technical Specifications

Item	Specifications
Product Name	Linear Encoder PCB Assy / Raster Sensor
Part Number (P/N)	MP-E106614 (Replaces E103961 / E104051)
Brand	Mimaki
Compatible Models	JV33, JV5, CJV30, JV150, JV300, CJV150, CJV300, UJF-3042 Series, etc.
Sensing Resolution	Supports 150 LPI encoder strip patterns
Origin	Japan
