This JFX200-2513 Pressure Control Pump Assy - E106684 is suitable for Mimaki printers.

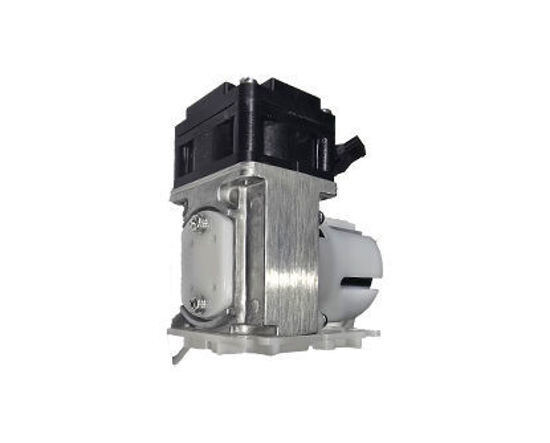

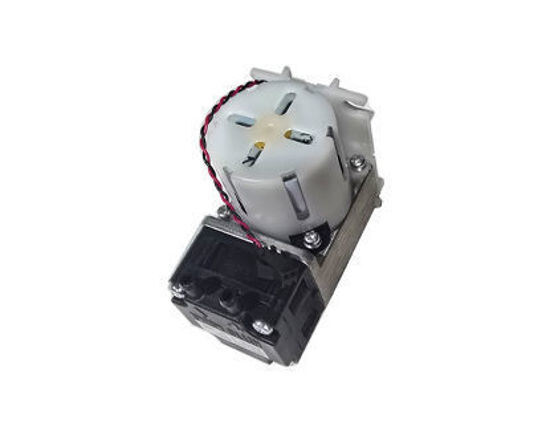

Genuine Mimaki JFX200-2513 Pressure Control Pump Assembly (Part Number: E106684 / MP-E106684)
Product Overview
The Mimaki Pressure Control Pump Assembly (E106684 / MP-E106684) is a 100% genuine, original equipment manufacturer (OEM) fluid and pneumatic management component. Made in Japan, this high-precision pump unit is engineered exclusively for Mimaki JFX200-2513 and JFX200-2513 EX grand-format UV LED flatbed printers.
It acts as the core engine for the printer's negative/positive pressure system, maintaining the delicate vacuum balance required inside the sub-ink tanks to ensure continuous, precise ink delivery and prevent printhead starvation or flooding.
Key Technical Specifications
- Part Name: Pressure Control Pump Assy / Vacuum Air Pump

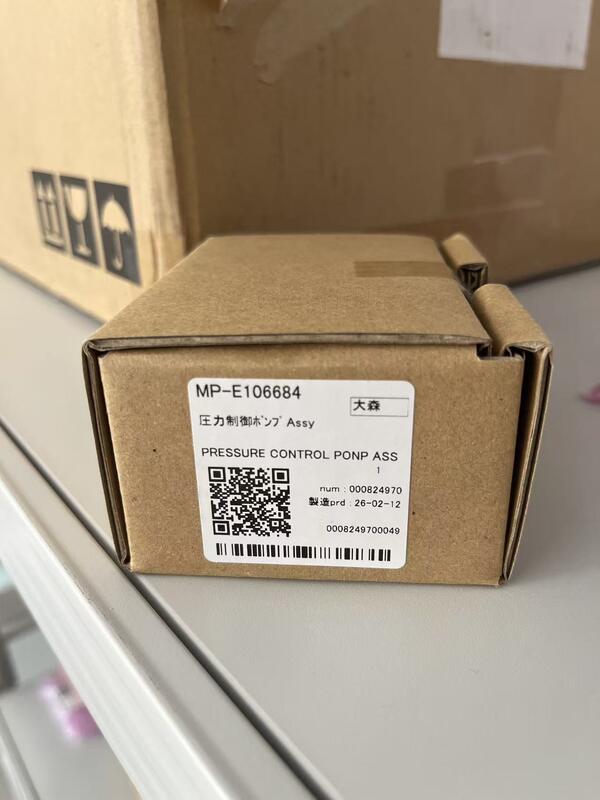

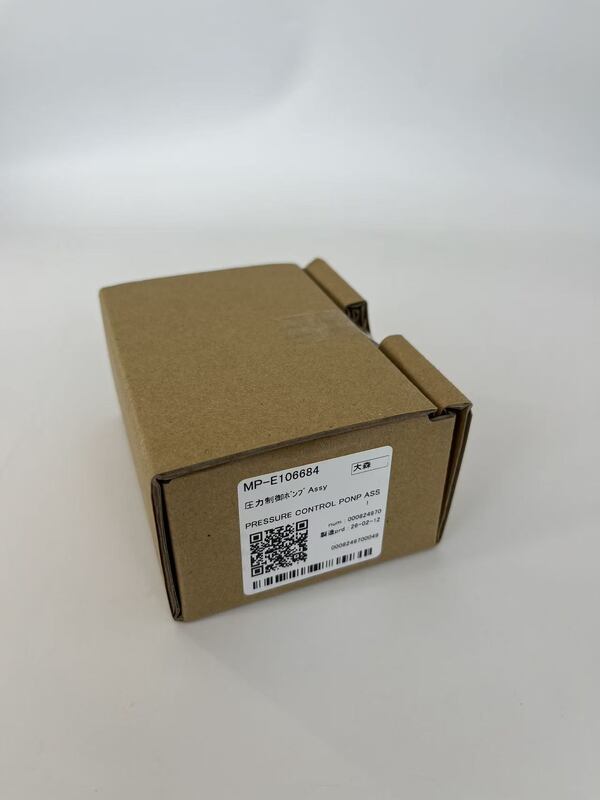

- Part Number: E106684 (Also cataloged as MP-E106684)
- Condition: 100% Brand New, Genuine Mimaki Original
- Function: Dual-action atmospheric pressure management (Negative pressure regulation)
- Compatible Models: Mimaki JFX200-2513 / JFX200-2513 EX
Key Features and Technical Benefits
1. Ultra-Precise Negative Pressure Regulation
Industrial UV printheads rely on a precise negative pressure vacuum to keep heavy UV ink suspended in the nozzles without dripping. This OEM pump delivers highly consistent air displacement, ensuring the pressure system reacts instantly to carriage movement and temperature fluctuations.
2. Heavy-Duty Industrial Motor
Built with a premium brushless motor and reinforced internal diaphragms, the E106684 pump is designed for continuous 24/7 operation in high-volume print shops. It operates with low vibration and minimal heat generation, preventing thermal interference with surrounding electronics.
3. Chemically Stable Internal Seals
Operating in proximity to UV ink mist and solvent vapors can degrade standard pumps. The MP-E106684 features advanced chemical-resistant valves and seals that resist swelling or drying out, guaranteeing a long service life and airtight seals.
4. Drop-In OEM Replacement & Integration
As a genuine factory assembly, this unit includes the pump motor, standard mounting bracket, and pre-configured wiring harness. It fits perfectly into the designated chassis bay of the JFX200, matching exact electrical voltage and airflow connectors for a seamless plug-and-play installation. [1]
Signs That Your Pressure Control Pump Needs Replacement
The pressure control pump is a vital safety component for your ink system. A failing pump can lead to catastrophic printhead issues. Replace this assembly immediately if you notice:
- "Pressure Parameter Error" or Vacuum Faults: The printer control panel throws persistent errors related to negative pressure or sub-tank vacuum limits.
- Severe Nozzle Dripping or Flooding: Ink continuously leaks or weeps from the printhead nozzles onto the bed, indicating the pump can no longer maintain a vacuum.
- Printhead Starvation / Severe Banding: The pump fails to supply adequate pressure during high-velocity printing, causing ink starvation, dropouts, or blank lines.
- Loud or Erratic Noise: The pump produces grinding, clicking, or abnormally loud buzzing sounds during operation, indicating mechanical or motor bearing failure.
