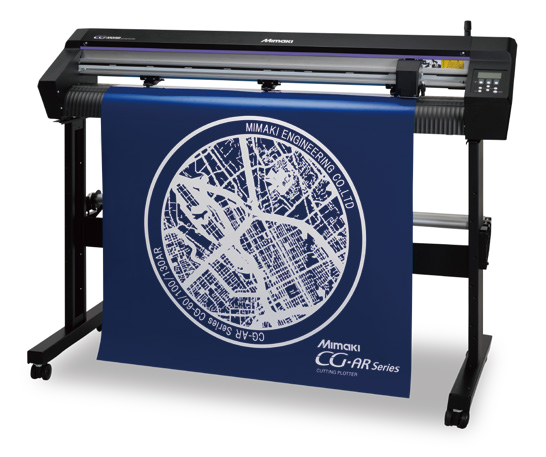

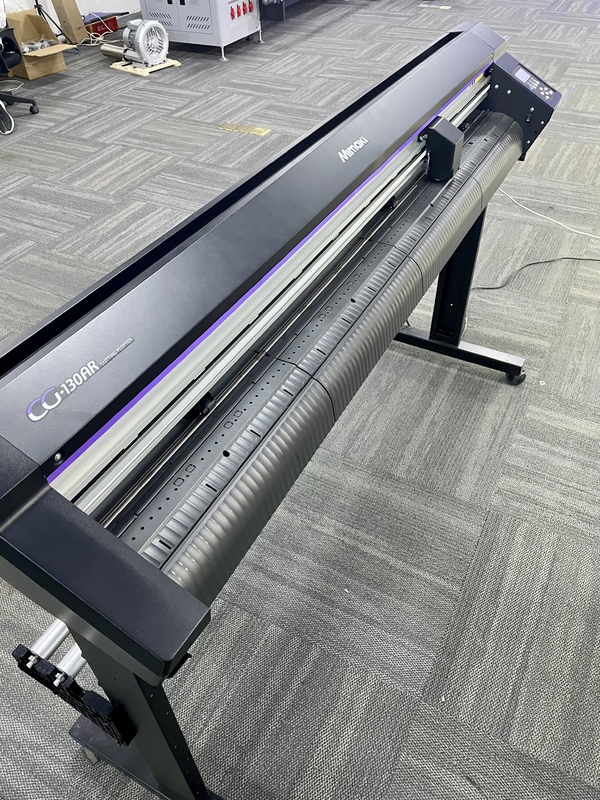

"CG-AR Series" are the entry-model of cutting plotter with improved cutting performance, compatibility with a wide range of cutting materials, and enhanced usability, all at an affordable price.
In addition to cutting letters, labels, and stickers, the CG-AR newly supports full cutting and folding lines of cardboads. It can also produce packages up to A3 size by using dedicated options.
Effective cutting area 606mm (23.8")
*Sheet basket and stand are optional.
Effective cutting area 1,070mm (42.1")
*Sheet basket is optional.
Effective cutting area 1,370mm (53.9")
*Sheet basket is optional.
| CG-60AR | CG-100AR | CG-130AR | ||
|---|---|---|---|---|
| Acceptable sheet width | 90 - 740 mm (3.5 - 29.1") |
90 - 1,250 mm (3.5 - 49.2") |
90 - 1,550 mm (3.5 - 61.0") |
|
| Effective cutting area *1 | 606 mm × 51 M (23.9" x 167.3') | 1,070 mm × 51 M (42.1" x 167.3') | 1,370 mm × 51 M (53.9" x 167.3') | |
| Maximum speed | Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s) | |||
| Adjustable speed range | 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment) 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment) |
|||
| Mechanical resolution | X direction: 2.5 μm, Y direction: 5 μm | |||
| Command resolution | 25 μm, 10μm(MGL-IIc) / 100 μm, 50 μm(MGL-Ic1) | |||
| Repeatability *2 | ± 0.2 mm / 2 M | |||
| Effective Repeatability | 586 mm × 2 M | 1,050 mm × 2 M | 1,350 mm × 2 M | |
| Maximum pressure | 550g | |||
| Range of down pressure |
Cutter | 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 550g (10g step) | ||
| Pen | 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 150g (10 g step) | |||
| Creasing tool | 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 550g (10g step) | |||
| Acceptable sheet *3*4 | Vinyl sheet, Fluorescent type vinyl sheet, Reflective sheet, Rubber sheet and Cardboard (used in combination with an optional sheet table) | |||
| Acceptable tool *5 | Eccentric cutter, Creasing tool, commercially available ball-point pen | |||
| Type of command | MGL-IIc / MGL-Ic1 | |||
| Interface | USB, RS-232C, Ethernet | |||
| Receiver buffer size | About 27 MB as standard (17 MB when sorting is effective) | |||
| Operational environment | Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ％ Rh (Non-condensing) |
|||
| Power supply | AC 100 V - 240 V 1A 50/60Hz | |||
| Power consumption | 168W or less | 228W or less | ||
| Dimensions(W×D×H) | 1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0") 1,010 × 580 × 1,160 mm *6 (39.8 × 22.8 × 45.7") *6 |
1,510 × 580 × 1,160 mm (59.4 × 22.8 × 45.7") |
1,810 × 580 × 1,160 mm (71.3 × 22.8 × 45.7") |
|
| Weight | 17kg (37.5 lb) 27kg (59.5 lb) *6 |
35kg (77.2 lb) | 43kg (94.8 lb) | |
| Stand | Options | Standard equipment | ||
*Click to view larger image.
 |
 |
 |
 |
|||
| Label | Window display | Paper craft | Package |
