Place of Origin:
Japan
Brand Name:
MIMAKI
Certification:
CE
Model Number:
TS55-1800
Document:

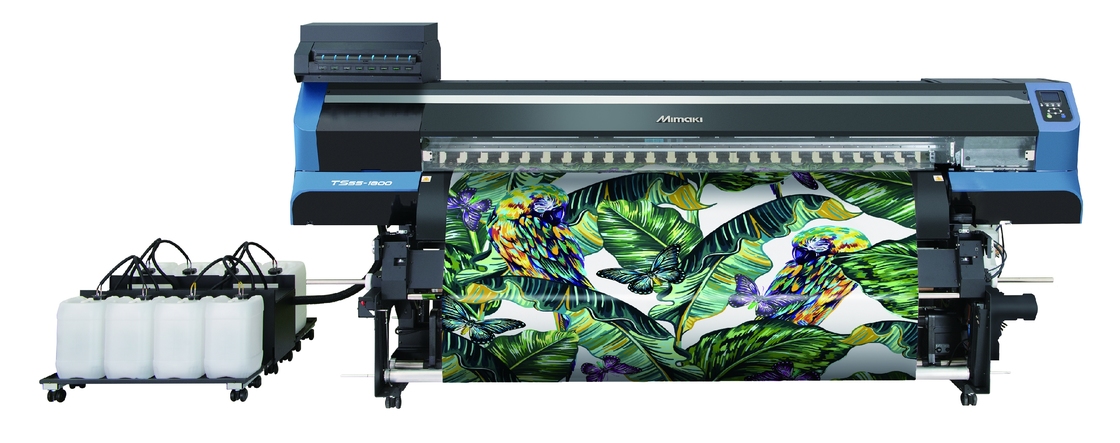

Mimaki TS55-1800 is the evolutional sublimation transfer inkjet printer for textile/apparel use, which achieved the high production ability with the maximum printing speed 135 sqm/h, the excellent functions and useful optional items ensuring the long-time continuous operation, and the reduction of running cost of manufacturing.
| TS55-1800 | ||
|---|---|---|
| Printhead | Head Assy Stagger layout | |
| Print resolution | 480/600/1,200dpi | |
| Max. print width | 1,940 mm (76.4 in) | |
| Max. media width | 1,950 mm (76.8 in) | |
| Rolled media weight | 45 kg (99.2 lb) or less | |
| Ink slot No. | 8 | |
| Ink set | 4-colors / 6-colors / 7-colors / 8-colors | |
| Ink | Type/Color | Sb610 (Bl/M/Y/K/Lbl/Lm/Lk/Fy/Fp) |
| Capacity | 2L Ink pack | |
| Certifications | VCCI Class A / FCC Class A / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ CB Report / Energy Star / RCM / EAC |
|
| Interface | Ethernet 1000BASE-T (Recommended) / USB 2.0 Hi-speed | |
| Power | Single phase AC100 - 120V/ AC200 - 240V x1 | |
| Power consumption | (AC100V) 1.44kW or less / (AC200V) 1.92kW or less | |
| Operational environment | Temperature: 20 – 30 °C (68 – 86 °F) Humidity: 35 – 65% Rh (Non condensing) |
|
| Dimensions (W × D × H) | 3,240 x 713 x 1,857 mm (127.5 x 28.0 x 73.1 in) | |
| Weight | 202 kg (445.3 lb) | |
| Mini jumbo roll unit (Option) | ||
|---|---|---|
| Roll media size | Max. weight: Winding 100 kg (220.5 lb) / Feeding 300 kg (661.4 lb) Max. diameter: Winding 280 mm (11.0 in) / Feeding 600 mm (23.6 in) Max. width: 1,910 mm (75.1 in) / Max. printable width: 1,900 mm (74.8 in) |
|
| Power | Single phase AC200-240V x 1 | |
| Power consumption | (AC200V) 1.0kW or less | |
| Dimensions (W × D × H) | 2,773 x 998 * x 602 mm (109.2 x 39.3 x 23.7 in) | |
| Weight | 100 kg (220.5 lb) | |
