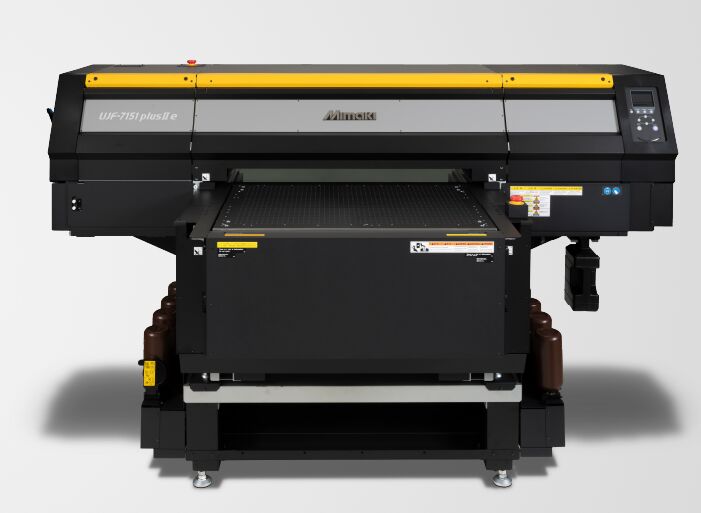

Name: Original Mimaki UJF-7151 plus II e Industrial UV-LED Flatbed Printer with 1800 dpi High-Precision and 10mm Gap Printing.
Brand: Henan Joyin Digital Technology Co., Ltd.
SKU: Mimaki UJF-7151 plus II e
Availability: InStock

Home > Products > Mini Flatbed UV Printer >

Original Mimaki UJF-7151 plus II e Industrial UV-LED Flatbed Printer with 1800 dpi High-Precision and 10mm Gap Printing.

Mimaki UJF-7151 plus II UV printer

Industrial flatbed UV printer 1800 dpi

UV-LED printer with 10mm gap printing

Place of Origin:

Japan

Brand Name:

Mimaki

Certification:

Model Number:

Mimaki UJF-7151 plus II e

Document:

UJF-7151plus2e_EN.pdf

Chat Now

Request A Quote

Product Details

Model:

UJF-7151 Plus II E

Ink Types:

LH-100 (Rigid), LUS-120 (Flexible), LUS-350 (Thermoforming)

Dimensions (WxDxH):

2,203 X 1,580 X 1,293 Mm

Max Media Thickness:

153 Mm (6.02")

Highlight:

Mimaki UJF-7151 plus II UV printer

Industrial flatbed UV printer 1800 dpi

UV-LED printer with 10mm gap printing

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard Packaging

Delivery Time

10-15 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Mimaki JFX200-2513EX Industrial LED-UV Flatbed Inkjet Printer with 2500×1300mm Print Area and 1200dpi Resolution

Chat Now

Mimaki JFX200-1213EX Industrial LED-UV Flatbed Inkjet Printer with 1200x1200dpi Resolution

Chat Now

Roland VersaOBJECT MO-240: High-Definition, High-Speed Benchtop UV Flatbed Printer.

Chat Now

Joyinjet JN-6090U UV Flatbed Printer with Good Price and High Quality for DTF Printing

Chat Now

86--13303811925

rico@joyinprinter.com

Chat Now

Product Description

Product Introduction

The

Mimaki UJF-7151 plus II e

is a high-performance industrial UV inkjet printer that sets a new benchmark for accuracy and productivity. Featuring a generous 710 x 510 mm (28" x 20") print area, it retains the proven stability of the UJF series while introducing the "e" series enhancements: higher resolution up to 1800 dpi, a massive 30 kg table load capacity, and the advanced LD3 Mode. It is specifically engineered for high-demand industrial workflows, including the production of control panels, automotive parts, and high-end promotional goods.

Main Functions

8-Head Staggered Configuration: Equipped with 8 industrial print heads (2 more than the previous model), allowing for high-speed simultaneous printing of color, white, clear, and primer.
LD3 (Long Distance) Mode: Enables high-quality printing on curved or uneven surfaces with a height gap of up to 10 mm, maintaining sharp details on molded or stepped parts.
2.5D Texture & Emboss Printing: Capable of building up layered ink textures up to 5 mm thick, perfect for creating tactile 3D effects, braille, or decorative embossing.
High-Speed Primer Function: Features a dedicated primer channel that applies adhesion promoters up to 3.7 times faster than previous models, streamlining the workflow for glass and metal.
IoT & Automation Ready: Supports MDL (Mimaki Device Language) commands, allowing for easy integration with robotic arms and automated production lines for unattended operation.

Core Advantages

Unrivaled Industrial Precision: A strengthened chassis and dual ball-screw table drive mechanism minimize vibration, ensuring pinpoint ink droplet landing even at the maximum 1800 dpi resolution.
Superior Productivity: Offers speeds up to 190% faster than the original UJF-7151 plus, making it a true workhorse for volume-based industrial manufacturing.
Advanced Image Processing: Utilizes MFD2 (Mimaki Fine Diffusion 2) and MAPS4 technology to eliminate banding and graininess, resulting in smooth gradations and solid fills.
Cost-Efficient Operation: Includes a new Ink-Saving Function that can reduce ink consumption by up to 42% while maintaining natural color balance and professional output quality.
Heavy-Duty Versatility: The increased table load capacity of 30 kg (66 lbs) allows for the use of heavy metal jigs and large, dense substrates without compromising accuracy.

Specifications

Item	Details
Model	UJF-7151 plus II e
Max Print Area	710 x 510 mm (28" x 20")
Max Media Thickness	153 mm (6.02")
Max Media Weight	30 kg (66 lbs)
Print Resolution	600 / 900 / 1200 / 1800 dpi
Ink Types	LH-100 (Rigid), LUS-120 (Flexible), LUS-350 (Thermoforming)
Ink Configuration	CMYK + Lc + Lm + White + Clear + Primer
Interface	Ethernet (1000 BASE) / USB 2.0
Dimensions (WxDxH)	2,203 x 1,580 x 1,293 mm
Weight	330 kg (728 lbs)
