Product Description

Product Overview

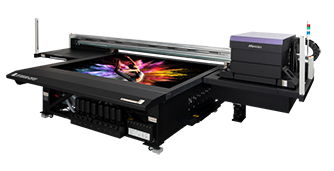

The Mimaki JFX600-2513 is a flagship flatbed printer engineered for large-scale industrial production. As the successor to the JFX500, it features 16 high-performance printheads, delivering speeds approximately three times faster than its predecessor. With a standard 2.5m x 1.3m bed size, it perfectly accommodates global standard architectural and signage panels, making it the ultimate tool for signage, interior decor, and industrial manufacturers demanding peak productivity and image quality.

Key Features

Extreme Industrial Productivity: Equipped with 16 printheads, it achieves a massive output of up to 200 ㎡/h, effortlessly handling high-volume, tight-deadline industrial orders.
Tactile 2.5D Texture Printing: Supports multi-layer printing to create "2.5D" embossed effects, simulating realistic textures such as brick, wood grain, oil paintings, and Braille.
60mm Media Thickness Capability: Supports rigid substrates up to 60mm thick, enabling direct printing on wood, acrylic, metal plates, ceramics, and heavy industrial materials.
Six-Zone Vacuum Table: The platform is divided into six independent sections, ensuring secure fixation for various media sizes and maintaining precision during high-speed movement.

Core Advantages

Superior Color Reproduction: Supports a 6-color configuration (including light inks) plus White and Clear, achieving industrial-leading performance in smooth gradients and vibrant saturation.
High Adhesion & Flexible Inks: Offers multiple UV ink options optimized for either extreme adhesion on hard metals or high flexibility on foldable substrates.
Automated Maintenance Ecosystem: Includes NCU (Nozzle Check Unit), NRS (Nozzle Recovery System), and an automated head maintenance device to minimize manual upkeep and ensure 24/7 uptime.
Eco-Friendly & Certified Safety: Utilizes cold-cure UV LED technology for low energy consumption and zero ozone emission. Inks are GREENGUARD Gold certified, safe for schools and healthcare environments.

Technical Specifications

Item	Specifications
Max. Print Area	2,500 mm × 1,300 mm (98.4" x 51.2")
Max. Media Thickness	60 mm (2.36")
Number of Heads	16 On-demand piezo heads
Max. Resolution	1200 dpi
Ink Type	UV-LED Curable Ink (LH-100 / LUS-120 / LUS-150 / LUS-211)
Color Configuration	4c / 6c + White & Clear & Primer
Max. Print Speed	200 ㎡/h
Table Load Capacity	50 kg / ㎡ (Approx. 162.5 kg total)
