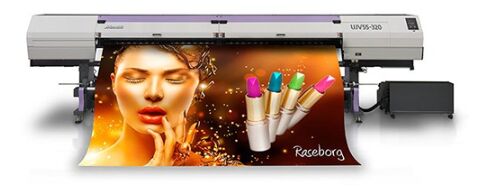

MIMAKI UJV55-320 3.2m grand format LED-UV inkjet printer

3.2 m Wide UV Inkjet Printer Expands Your Business

The UJV55-320, 3.2 m-wide LED-UV inkjet printer, offers high cost performance and expands your business.

• White ink adds value to prints
  - The combination of white and color inks adds values to transparent media print.
  - UV-curable inks form thicker ink films compared to other inks, which reduce light transmission through the colored area, even with backlit signage, enabling finishing with vivid coloring. Moreover, white ink also enables three-layer printing with color + white + color. This feature ensures a beautiful color reproduction for backlit signs at any time of day and night.

• Built-in LED light allows an operator to check a quality of printing for backlit signage during printing operation
  LED light is installed to the front side of the machine. An operator can check a quality of printing under almost the same conditions as being used for the backlit signage.

• High productivity leveraged by the 3.2-m-wide LED-UV printer
  - The new model does not require drying, allowing processing and operation immediately after printing, thereby reducing the total operation time.
  - High printing speed of 60m2/h is achieved on banner material in a high-speed mode (300 × 600 dpi, 4 pass).
  - The 3.2-m width allows twin roll print capability.

• Solutions for uninterrupted printing operations
  Nozzle check unit (NCU) automatically detects and cleans clogged nozzles. Moreover, the nozzle recovery system (NRS) uses only good nozzles as substitutes, if the clogged nozzles are not recovered after cleaning. These functions maintain constant printing and reduce waste printing due to defective nozzles.

• Mimaki’s superior print-image quality control technology
  - Mimaki Fine Diffusion 1 (MFD1), a patented dithering technique, is incorporated in the Mimaki RIP RasterLink6Plus software. * Patent number / JPN: 5230816
  - Mimaki Advanced Pass System 4 (MAPS4) reduces banding and uneven color printing.
  - The “waveform control” technique ensures ink droplet landing accuracy.

Production Example of UJV55-320

*Click to view larger image.

Illumination signboard		Outdoor signboard		Poster		Banner
