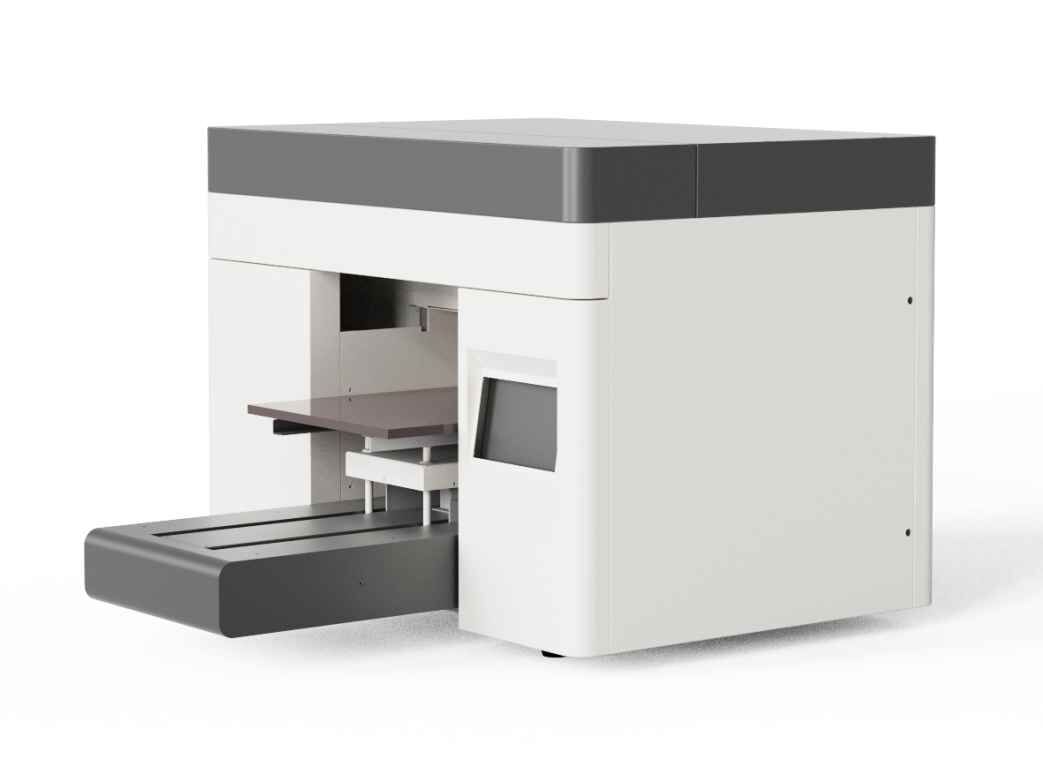

Name: JOYINJET JN-A3 Mini Flatbed UV Printer with 3200DPI Resolution, 8-Color Ink System, and Flat/Roll/Cylindrical Printing Functions
Brand: Henan Joyin Digital Technology Co., Ltd.
SKU: JN-A3 UV Printer
Availability: InStock

Home > Products > Mini Flatbed UV Printer >

JOYINJET JN-A3 Mini Flatbed UV Printer with 3200DPI Resolution, 8-Color Ink System, and Flat/Roll/Cylindrical Printing Functions

3200DPI UV Printer

8-Color Mini Flatbed UV Printer

Flat/Roll/Cylindrical Printing UV Curing Printer

Place of Origin:

China

Brand Name:

JOYINJET

Certification:

Model Number:

JN-A3 UV Printer

Document:

JN-A3UV.pdf

Chat Now

Request A Quote

Product Details

Highlight:

3200DPI UV Printer

8-Color Mini Flatbed UV Printer

Flat/Roll/Cylindrical Printing UV Curing Printer

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

Negotiable

Payment Terms

L/C,D/A,D/P,T/T,Western Union

JOYINJET JN-A3 Mini Flatbed UV Printer with 3200DPI Resolution, 8-Color Ink System, and Flat/Roll/Cylindrical Printing Functions

Chat Now

Video

JOYINJET JN-6090U UV Flatbed Printer with 3x Epson I3200-U1 Heads and 600x900mm Printing Size Featuring Foil Varnish Function

Chat Now

Mimaki UJF-3042MkII e UV Flatbed Printer with 1200x1200dpi Resolution and 300mm Width for High-Definition Printing

Chat Now

Roland VersaOBJECT MO Series Benchtop UV Flatbed Printer - High-Speed Printing with High-Definition Output for Versatile Substrates

Chat Now

86--13303811925

info@joyinprinter.com

Chat Now

Product Description

JOYINJET JN-A3 UV Printer (I3200-U1HD)

3200DPI 8-Color UV Curing Printer with Flat/Roll/Cylindrical Printing Functions

Professional-Grade Epson I3200-U1HD Print Head

Equipped with 1pc original EPSON I3200-U1HD print head (8 nozzle lines) for precise inkjet control, 3200DPI ultra-high resolution, and vivid color reproduction—delivering photo-quality prints for commercial and customized projects.

8-Color Versatility & Special Effects

Standard 8-color configuration: CMYK + Double White (WW) + Foil Varnish (F(Y)+F(M)) / Fold Varnish. Enables dense white coverage on dark substrates, glossy/metallic finishes, and textured effects—perfect for signage, crafts, promotional products, and personalized gifts.

Multi-Mode Printing: Flat + Roll + Cylindrical

Flat Printing: 297×420mm (A3 size) for rigid materials up to 95mm thick
Roll Printing: 297×420mm (290mm width roll) for flexible media like vinyl or leather
Cylindrical Printing (optional accessory): Supports objects 25-80mm in diameter & 20-210mm in length (e.g., bottles, mugs, tubes)

Covers diverse printing needs without extra equipment.

All-Material Compatibility

Print directly on acrylic, aluminum board, ceramic tile, glass, wood board, leather, PVC, and more—no pre-treatment required. Environment-friendly UV curing ink ensures strong adhesion and scratch resistance.

Efficient & User-Friendly Operation

Printing speed: 0.28-3m²/h (adjustable for quality vs. efficiency)
Supports multiple file formats: TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc.
Equipped with JOYINJET&RIP control software + Gigabit Ethernet Port for fast data transmission
Compatible with Win10 (64bits) for stable, easy-to-use operation

Technical Specifications

Parameter	Details
Model	JOYINJET JN-A3 UV Printer
Print Head	1PC EPSON I3200-U1HD (8 nozzle lines)
Resolution	3200DPI
Printing Modes	Flat (297×420mm) + Roll (290mm width) + Cylindrical (optional)
Media Thickness	1-95mm (flat media)
Ink Configuration	8 colors: CMYK + WW + F(Y)+F(M) / Fold Varnish
Ink Type	Environment-friendly UV Curing Ink
Printing Speed	0.28-3m²/h
Compatible Media	Acrylic, aluminum board, ceramic tile, glass, wood, leather, etc.
Power Rating	220V/50HZ/60HZ, 1000W
Machine Size (N.W.)	1050×930×590mm (80KG)
Package Size (G.W.)	1150×1020×750mm (120KG)
Operating System	Win10 (64bits) + Gigabit Ethernet Port
Control Software	JOYINJET&RIP
Optional Accessories	Cylindrical Printing Accessory (25-80mm diameter), Roll Printing Accessory (290mm width)
