Place of Origin:
Japan
Brand Name:
MIMAKI
Certification:
CE
Model Number:
JFX500-2131
Document:

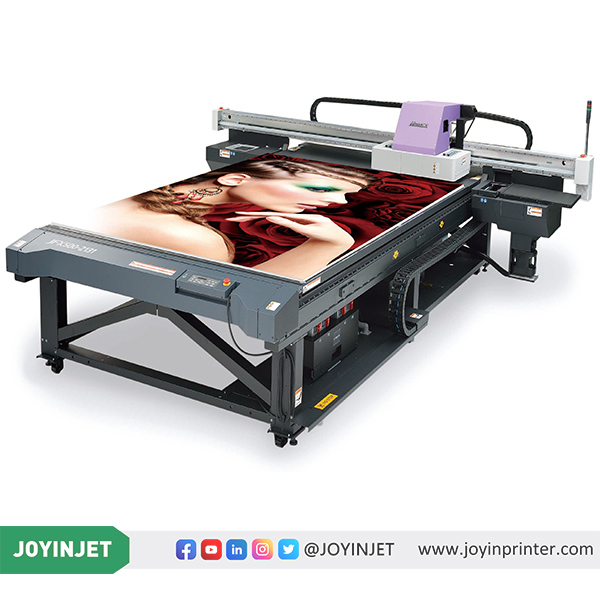

For amazing speed, the JFX500-2131 is equipped with Mimaki’s latest print head and UV LED technology.
Mimaki’s exclusive head control technology delivers an amazing high print quality.
This combination of "Speed" and "High quality" are essential for large format printers.
Both of them indeed come true in the newly released JFX500-2131!
| JFX500-2131 | ||
|---|---|---|
| Head | On-demand Piezo head (6 printheads with 3 staggered configuration) | |
| Print resolution | 300dpi, 600dpi, 900dpi, 1,200dpi | |
| Ink | UV curable ink | LUS-120 (C, M, Y, K, W, Cl) |
| LUS-150 (C, M, Y, K, W) | ||
| LUS-200 (C, M, Y, K, W) | ||
| LH-100 (C, M, Y, K, W, Cl) | ||
| PR-100, PR-200 (Primer) | ||
| Supply system | Supplied by 2L Ink Station | |
| Ink circulation (*1) | White ink circulation by MCT (Mimaki Circulation Technology) | |
| Ink degassing module | Equipped with MDM (Mimaki Degassing Module) | |
| Maximum print size (W X D) | 2,100 X 3,100 mm (82.7 X 122.0") | |
| Media | Size (W X D) | 2,100 X 3,100 mm (82.7 X 122.0") |
| Height | Max. 50 mm (2.0") | |
| Weight | Less than 50 kg (110.2 lbs.) / m2 | |
| Media table | Air suction by vacuum | |
| Vacuum area | Vertically divided into 4 zones | |
| Print accuracy | Absolute accuracy | ± 0.3 mm (0.01") or ± 0.3% from specified print distance |
| Repeatability | ± 0.2 mm (0.01") or ± 0.1% from specified print distance | |
| UV unit | Equipped with UV LED (Light Emitting Diodes) | |
| Lifetime (*2) | About 5,000 hours | |
| Interface | USB2.0 | |
| Applicable standard | VCCI class A, CE Marking, CB Report, UL, RoHS Directive | |
| Power specifications | AC 200 – 240 V, 50/60 Hz | |
| Power consumption | Less than 2.4 kVA | |
| Operational environment | Temperature | 15 – 30 °C (59 – 86 °F) |
| Humidity | 35 – 65 %Rh | |
| Temperature accuracy | 18 – 25 °C (64.4 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (18 °F) | |
| Dust | Equivalent to normal office level | |
| Dimensions (W X D X H) (*3) | 4,100 X 4,462 X 1,490 mm (161.4 X 175.7 X 58.7") | |
| Weight (*3) | 1,353 kg (2,982.8 lbs.) | |
