Place of Origin:
Japan
Brand Name:
MIMAKI
Certification:
CE
Model Number:
UJF-3042MKII
Document:

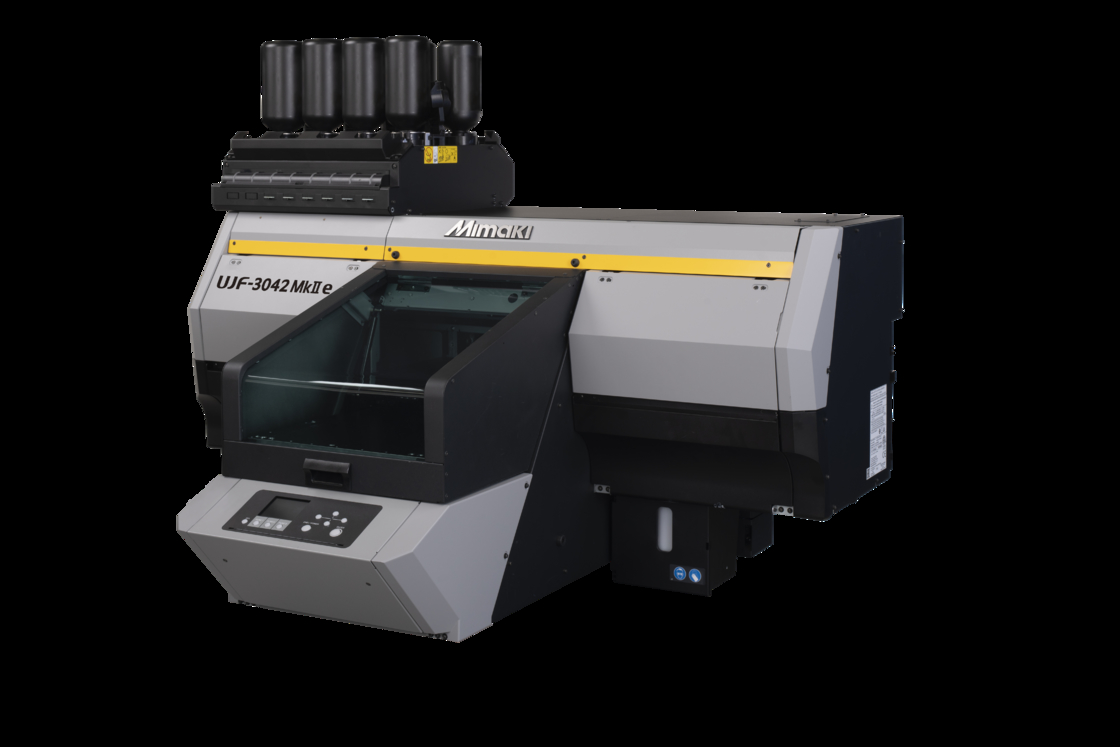

The new UJF-3042MkII e is the successor model to the UJF-3042MkII.
Supports A3 size & 153 mm height.
UJF-3042MkII e is a flatbed UV inkjet printer that has further improved image quality and machine stability, while maintaining the operability that was highly acclaimed in the current model.
| UJF-3042MkII e | |||
|---|---|---|---|
| Printhead | On-demand piezo printhead (3 printheads arranged in a staggered line) |
||
| Print resolution | Maximum: 1200 x 1200 dpi | ||
| Maximum printable area | Width: 300mm Length:420mm (A3 size) |
||
| Ink | Type/Color | LH-100 (C, M, Y, K, W, Cl) LUS-120 (C, M, Y, K, W, Cl) LUS-150 (C, M, Y, K, W) PR-200 (Primer) |
|
| Packaging | LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle LUS-150: 1 L bottle |
||
| Media | Thickness | 153 mm (6 in) or less | |
| Weight | 5 kg (11 lb) or less | ||
| Certifications | VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM |
||
| Interface | Ethernet / USB2.0 | ||
| Noise level | Standby mode: 55dB or less (FAST-A, measured1 m away from the source) Continuous operation: 65 dB or less Discontinuous operation: 70 dB or less |
||
| Power supply | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz | ||
| Power consumption | 1,000W or less | ||
| Operational environment | Temperature | 20 - 30 degC (68 - 86 degF) | |
| Humidity | 35 - 65％Rh (Non condensing) | ||
| Recomended Temperature | 20 - 25 degC (68 - 77 degF) | ||
| Temperature change | ±10 degC (±50 degF) /h or less | ||
| Dust level | Equivalent to a general office floor level | ||
| RIP software | RasterLink7 (Bundled) | ||
| Dimensions (W × D × H) *1 | 1,355 mm × 1,290 mm × 856 mm (53.4 in × 50.8 in × 33.7 in) |
||
| Weight | 135 kg (297.6 lb) | ||
