Place of Origin:
Japan
Brand Name:
Mimaki
Certification:
CE
Model Number:
UJF-7151 Plus
Document:

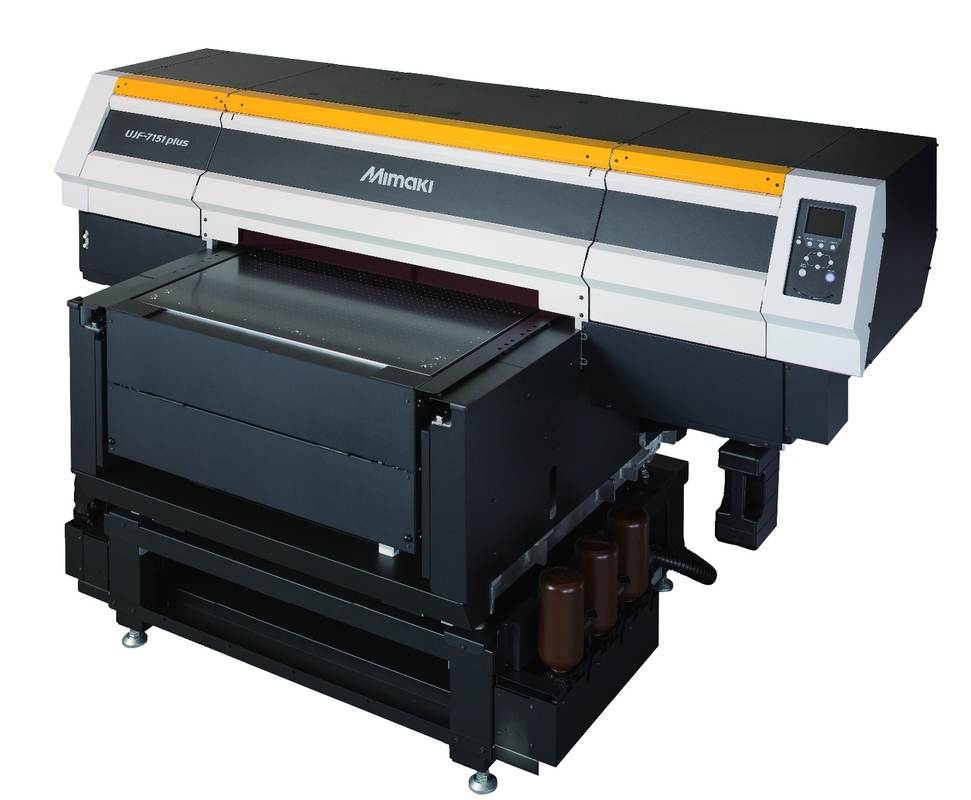

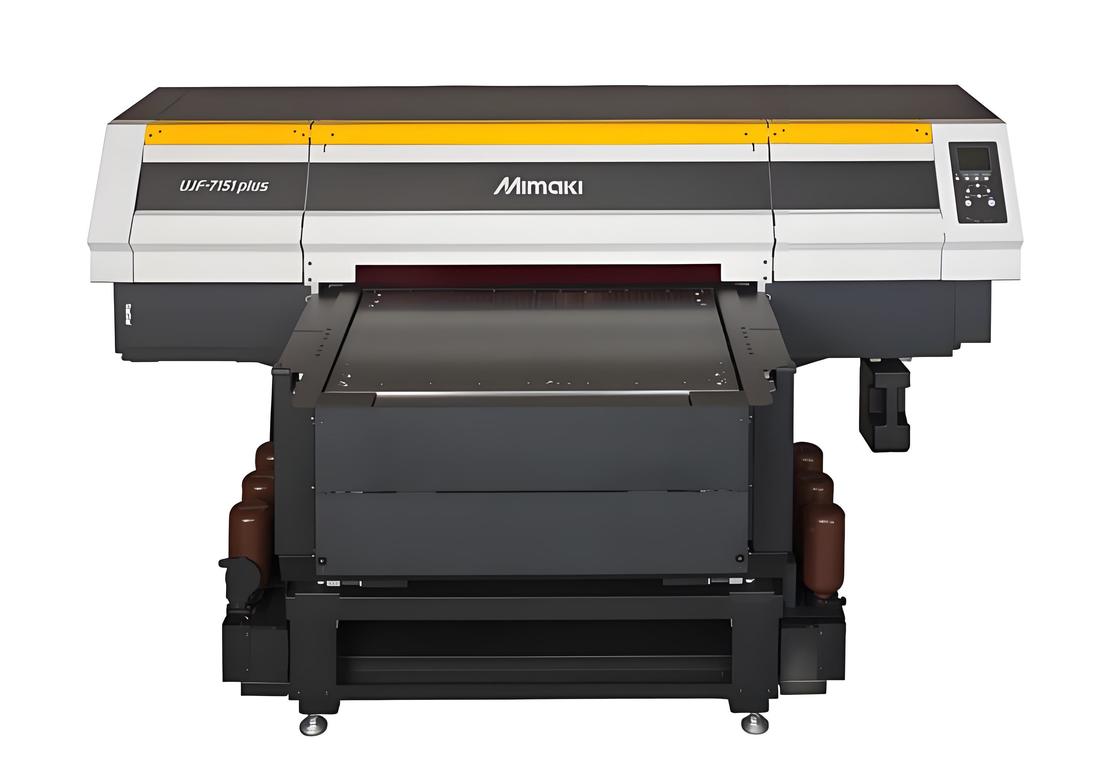

“UJF-7151 plus” is a “high performance UV Inkjet printer” that enables high-precision ink dot placement and beautiful printing through Mimaki’s proprietary technology and top-level productivity.
| UJF-7151 plus | ||
|---|---|---|
| Printhead | On-demand piezo head (6 staggered printheads) | |
| Maximum print resolution | 1,200 dpi | |
| Maximum printable area | 710 × 510 mm (28 × 20 in) | |
| Ink | Type/Color | LH-100 (C, M, Y, K, W, Cl) MUH-100-Si (Si) LUS-120 (C, M, Y, K, W, Cl) LUS-350 (C, M, Y, K, W, Cl) PR-200 (Primer) |
| Package size | 200ml bottle (MUH-100-Si) 250ml bottle (LH-100, LUS-120, PR-200) 1L bottle (LH-100, LUS-120, LUS-350, PR-200) |
|
| Media | Size | 730 × 530 mm (28.7 × 20.9 in) or smaller |
| Height | 153 mm (6 in) or less | |
| Weight | 10 kg (22 lb) or less | |
| Certifications | VCCI class A, FCC class A, ETL UL 60950-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH |
|
| Interface | USB 2.0 Hi-speed / Ethernet 1000BASE-T | |
| Power supply | Single-phase AC100 – 120V / AC200 – 240V | |
| Power consumption | 1.3kW | |
| Operational environment | Temperature: 15 – 30 °C (59 - 86 °F) Humidity: 35 – 65% Rh (Non condensing) Recommended temperature range for stable operation: 20 – 25 °C (68 - 77 °F) |
|
| Dimensions (W × D × H) | 2,193 × 1,572 × 1,273 mm | |
| Weight | 317 kg (Base stand weight is included) | |
*Click to view larger image.
 |
 |
 |
 |
|||
| 3D lenticular | Nameplate (Full-color) | Nameplate (Etching) | Card | |||
 |
 |
 |
 |
|||
| Membrane switch | Photo album | Wedding board | Gift & novelty | |||
