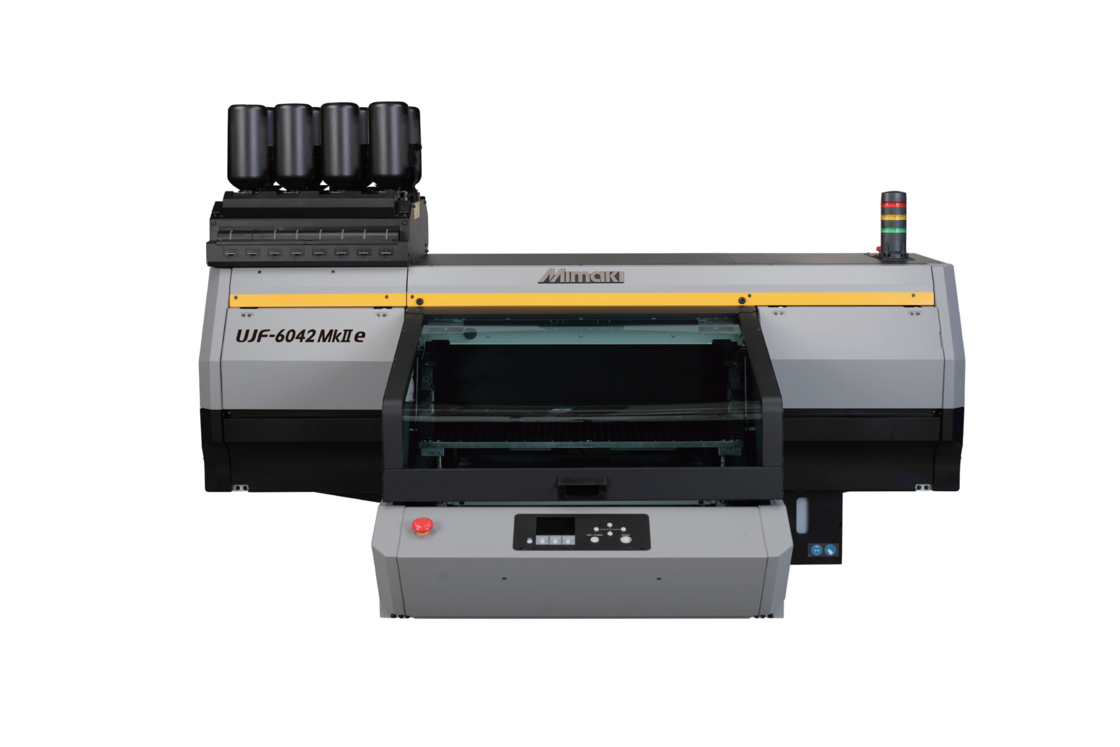

A2 Mimaki UV Flatbed Printer UJF-6042MKII E LED UV Mimaki Printer

Creating Unlimited Originality

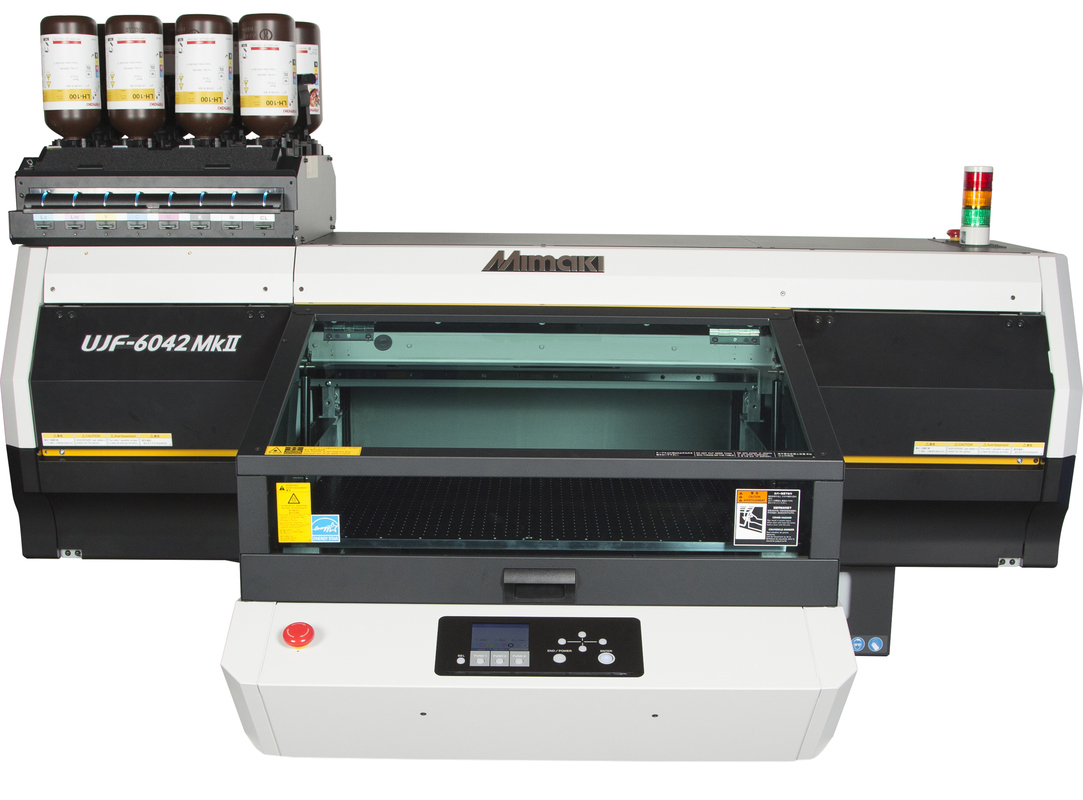

The new UJF-6042MkII e is the successor model to the UJF-6042MkII.

Supports A2 size & 153 mm height.
UJF-6042MkII e is a flatbed UV inkjet printer that has further improved image quality and machine stability, while maintaining the operability that was highly acclaimed in the current model.

• “MFD2 (half-toning)” support for improved image quality.
• Incorporation of the reliable Mimaki technology.
• Support for “MDL commands” achieves automation and labor saving of printing process such as workpiece transfer.
• “RasterLink7" enables numbering and variable data insertion printing (Variable print function).
• The optional deodorizing unit efficiently removes odors.

• Specifications



  UJF-6042MkII e
  Printhead		On-demand piezo printhead (4 printheads arranged in a staggered line)
  Print resolution		Maximum: 1200 x 1200 dpi
  Maximum printable area		Width:610mm Length:420mm (A2 size)
  Ink	Type/Color	LH-100 (C, M, Y, K, Lc, Lm, W, Cl) LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) LUS-150 (C, M, Y, K, W) PR-200 (Primer)
  	Packaging	LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle LUS-150: 1 L bottle
  Media	Thickness	153 mm (6 in) or less
  	Weight	8 kg (17.7 lb) or less
  Certifications		VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM
  Interface		Ethernet / USB2.0
  Noise level		Standby mode: 55dB or less (FAST-A, measured1 m away from the source) Continuous operation: 65 dB or less Discontinuous operation: 70 dB or less
  Power supply		Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
  Power consumption		1,000W or less
  Operational environment	Temperature	20 - 30 degC (68 - 86 degF)
  	Humidity	35 - 65％Rh (Non condensing)
  	Recomended Temperature	20 - 25 degC (68 - 77 degF)
  	Temperature change	±10 degC (±50 degF) /h or less
  	Dust level	Equivalent to a general office floor level
  RIP software		RasterLink7 (Bundled)
  Dimensions (W × D × H) *1		1,665 mm × 1,290 mm × 856 mm (65.6 in × 50.8 in × 33.7 in)
  Weight		150 kg (330.7 lb)
