Place of Origin:
CHINA
Brand Name:
JOYINJET
Certification:
CE
Document:

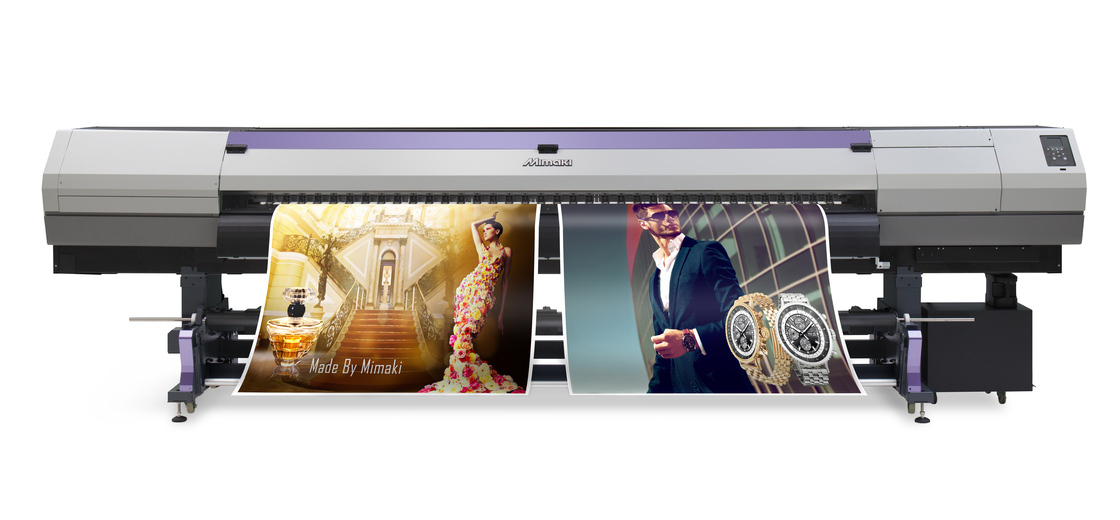

The totally new SIJ-320UV grand-format LED–UV inkjet printer is a high-performance printer developed using Mimaki’s concentrated inkjet technologies to provide good quality printing with a maximum printable width of 3.2 m.
| SIJ-320UV | ||
|---|---|---|
| Head | On-demand piezo head (4 staggered printheads) | |
| Print resolution | 300 dpi, 600 dpi, 900 dpi, and 1,200 dpi | |
| Ink droplet size | Minimum: 7 pl Maximum: 36 pl | |
| Head gap (Manual adjustment) |
1.7 mm / 1.9 mm / 2.6 mm / 3.3 mm (Distance between the platen and the print head) |
|
| Ink | Type | LED-UV ink LUS-120 |
| LED-UV ink LU-125 *Only available in specific countries |
||
| Color | C, M, Y, K | |
| Packaging | 1 liter ink bottle Ink can be filled up to 3 liters per ink container of the printer. |
|
| Maximum print width | 3,200 mm (126 in) | |
| Maximum media width | 3,250 mm (127.9 in) (Twin rolls printing with a small drive shaft: 1,524 mm (60 in) × 2) |
|
| Minimum media width | 210 mm (8.2 in) | |
| Media thickness | 1.0 mm or less | |
| Roll outer diameter | Large drive shafts : Φ250 mm or less Small drive shaft with roll holders : Φ180mm or less |
|
| Roll weight | Large drive shafts : 100 kg or less Small drive shaft with roll holders : 25 kg or less |
|
| Power supply | AC 200–240V ± 10% 50/60Hz ±1 Hz, 15 A or less | |
| Power consumption | 3.6 kW or less | |
| Operational environment |
Temperature | 20 – 30 °C (68 – 86 °F) |
| Humidity | 35–65 %Rh (No condensing) | |
| Temperature accuracy | 20 – 25 °C (68 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (± 18 °F/h) | |
| Dust | 0.15 mg/㎥ (Equivalent to normal office level) | |
| Dimensions (W×D×H) | 5,410 mm × 995 mm × 1,440 mm (213 x 39.2 x 56.7 in) | |
| Shipping dimensions (W×D×H) | 5,750 mm × 1,140 mm × 1,210 mm (226.4 x 44.9 x 47.6 in) | |
| Weight | 850 kg (1873.9 lb) | |
| LUS-120 ［C,M,Y,K］ |
C M Y K |
|---|---|
| LU-125 ［C,M,Y,K］ |
C M Y K |
*Click to view larger image.
 |
 |
 |
 |
