900dpi 1200dpi Large Format Flatbed Printer UV LED Inkjet Printer Mimaki JFX500-2131

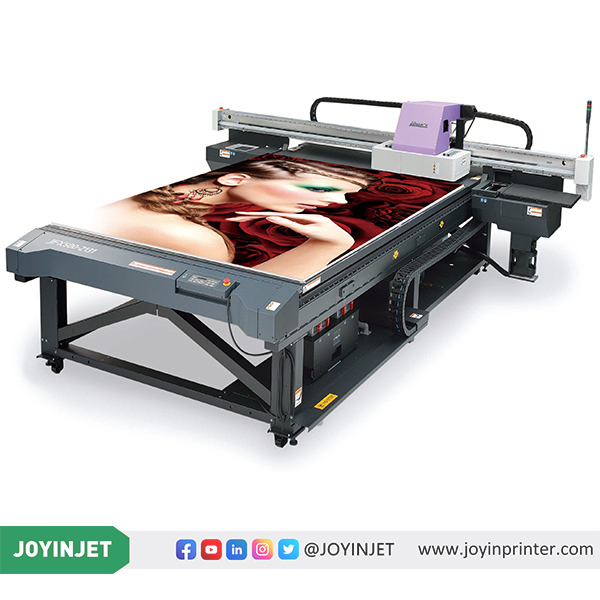

Mimaki JFX500-2131 Large Format UV LED Flatbed inkjet Printer

Max Speed 60m2/h. Powerful combination of Speed and Quality.

For amazing speed, the JFX500-2131 is equipped with Mimaki’s latest print head and UV LED technology.
Mimaki’s exclusive head control technology delivers an amazing high print quality.
This combination of "Speed" and "High quality" are essential for large format printers.
Both of them indeed come true in the newly released JFX500-2131!

The JFX500-2131 sets a milestone in design and performance from Mimaki, offering a newly developed print head, UV ink and advanced UV LED curing features.

 Faster!

Maximum print speed of 60m2/h color printing.

 Higher quality print!

Mimaki offers a precise head movement control feature that produces exceptional high resolution image quality.

 More reliable!

Equipped with white ink circulation and ink degassing module that enhance operation stability.

 User-friendly!

Operations and command functions are easy to understand.

 ECO-friendly!

Uses long lasting LEDs, resulting in less power consumption and reduces waste by offering a refillable 2 liter ink system vs. disposable cartridges.

Specifications

JFX500-2131
Head		On-demand Piezo head (6 printheads with 3 staggered configuration)
Print resolution		300dpi, 600dpi, 900dpi, 1,200dpi
Ink	UV curable ink	LUS-120 (C, M, Y, K, W, Cl)
		LUS-150 (C, M, Y, K, W)
		LUS-200 (C, M, Y, K, W)
		LH-100 (C, M, Y, K, W, Cl)
		PR-100, PR-200 (Primer)
	Supply system	Supplied by 2L Ink Station
	Ink circulation (*1)	White ink circulation by MCT (Mimaki Circulation Technology)
	Ink degassing module	Equipped with MDM (Mimaki Degassing Module)
Maximum print size (W X D)		2,100 X 3,100 mm (82.7 X 122.0")
Media	Size (W X D)	2,100 X 3,100 mm (82.7 X 122.0")
	Height	Max. 50 mm (2.0")
	Weight	Less than 50 kg (110.2 lbs.) / m2
Media table		Air suction by vacuum
	Vacuum area	Vertically divided into 4 zones
Print accuracy	Absolute accuracy	± 0.3 mm (0.01") or ± 0.3% from specified print distance
	Repeatability	± 0.2 mm (0.01") or ± 0.1% from specified print distance
UV unit		Equipped with UV LED (Light Emitting Diodes)
	Lifetime (*2)	About 5,000 hours
Interface		USB2.0
Applicable standard		VCCI class A, CE Marking, CB Report, UL, RoHS Directive
Power specifications		AC 200 – 240 V, 50/60 Hz
Power consumption		Less than 2.4 kVA
Operational environment	Temperature	15 – 30 °C (59 – 86 °F)
	Humidity	35 – 65 %Rh
	Temperature accuracy	18 – 25 °C (64.4 – 77 °F)
	Temperature gradient	Less than ± 10 °C/h (18 °F)
	Dust	Equivalent to normal office level
Dimensions (W X D X H) (*3)		4,100 X 4,462 X 1,490 mm (161.4 X 175.7 X 58.7")
Weight (*3)		1,353 kg (2,982.8 lbs.)



---
